Receptacle Contact AWG 28 to 20
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 24 to 20
- AWG 28 to 24
| Article Number | SJ1F-002GF-P0.8 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |

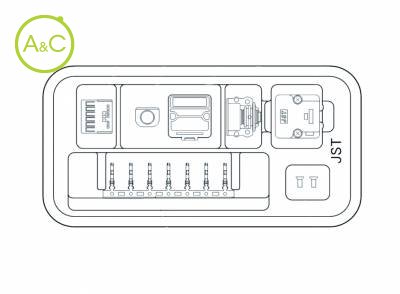

| General Description | 2.0mm Pitch Connector Kit for Motor |
| Applicable Wire Size | 0.08 to 0.20 (AWG #28 to #24) mm² |
| Connection Type | Factory Automation Connectors |
| Pitch / Style | 2.00 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Waterproof |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
6 Circuit connector for power supply of servomotor.
This connector is supplied in kits, including all components.
Waterproof grade: Grade 5 ingress protection of JIS C 0920 (IEC 60529 IPX5)
Standards
UL Recognized E60389
RoHS Compliant
