Applicable Wire
- 26 to 22 AWG
| Article Number | SLEH-001T-P0.15 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | LED Connectors (1.8mm Pitch Disconnectable Crimp Style) |
| Applicable Wire Size | 0.13 to 0.33 (AWG #26 to #22) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.80 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

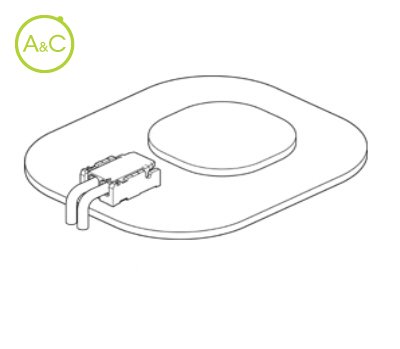

JST introduces the LEH connector to its extensive range of LED connectors for the LED lighting industry. This 1.8mm pitch, 2 way wire to board connector has a mounting height of 3mm, which provides a low profile and space saving solution for all general LED lighting applications.
Due to its top entry style, this connector system offers excellent operating advantages and greater design flexibility in meeting diverse product needs.
This connector system has a secure lock and a mechanism for preventing mis-insertion, the SMT connector is suitable for a wire range of 26 to 22 AWG.
Taking in to consideration environmental factors the LEH connector is Halogen free and RoHS compliant.
Low profile and space saving design
Mounting height at connector mounting side: 3mm
Secure lock mechanism
Mechanism for preventing wrong insertion
Halogen free and RoHS compliant
