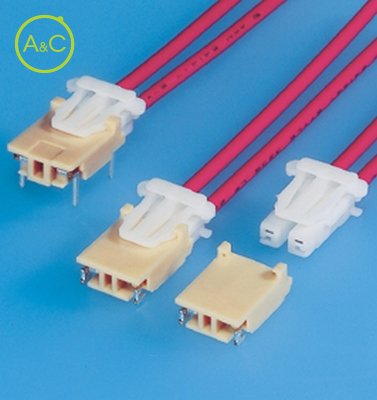

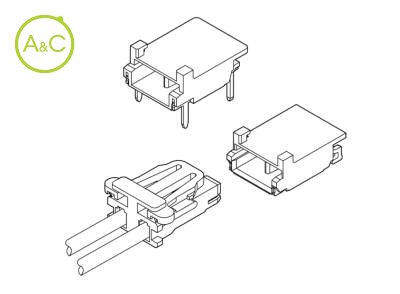

The BD connector series introduced by JST is a 2 circuit, 3.5mm pitch wire to board connector. This small and low profile connector has a high voltage rating of 1,400 volts, which makes it an ideal connector for backlight applications of LCD's (liquid crystal displays). The BD connector also incorporates a unique locking feature, which makes this connector one of the most robust connectors of its type in the industry. Available in through hole (THT) and surface mount (SMT) variations, this side entry connector is suitable for both manual and automatic process environments, and is also compatible with the BHS series connector. Secure locking mechanism Arm-locking mechanism as secure lock is adopted in order to prevent coming out of housing. High withstand voltage design Securing the sufficient creepage distance, it considers as high withstanding voltage design. (Conformed to IEC-60950) When applying voltage rating, consideration of PC board pattern design is required. Low profile Corresponding to thinner LCD, the connector height is designed as small and low profile. Compatibility This BD connector is compatible with the BHS connector. Secure locking mechanism is available for BD connector header and socket only. Socket contact is same contact as BHS connector. Standards UL Recognized E60389 RoHS Compliant
