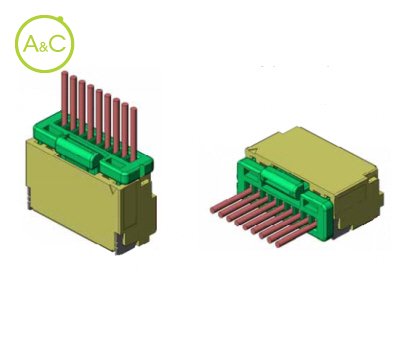

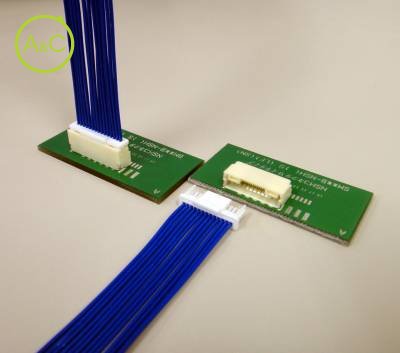

Side Entry Shrouded Header SMT
- NSH CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
| Article Number | SM02B-NSHSS-TB |
| Number Of Contacts | 2 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM03B-NSHSS-TB |
| Number Of Contacts | 3 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM04B-NSHSS-TB |
| Number Of Contacts | 4 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM05B-NSHSS-TB |
| Number Of Contacts | 5 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM06B-NSHSS-TB |
| Number Of Contacts | 6 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM07B-NSHSS-TB |
| Number Of Contacts | 7 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM08B-NSHSS-TB |
| Number Of Contacts | 8 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM09B-NSHSS-TB |
| Number Of Contacts | 9 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM10B-NSHSS-TB |
| Number Of Contacts | 10 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM11B-NSHSS-TB |
| Number Of Contacts | 11 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM12B-NSHSS-TB |
| Number Of Contacts | 12 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM13B-NSHSS-TB |
| Number Of Contacts | 13 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM14B-NSHSS-TB |
| Number Of Contacts | 14 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
| Article Number | SM15B-NSHSS-TB |
| Number Of Contacts | 15 |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This innovative space saving connector has a unique secure lock mechanism, which provides a clear audible click when mated.
Insertion forces are also kept low via a cleverly constructed spring feature, that utilises the inertia forces associated with the contact and housing elements, whilst maintaining consistent and durable contact pressure after repeated mating / unmating cycles.
Compatible with the SHL connector socket contact
Secure housing lock mechanism (outer lock)
Prevention of miss-insertion
Space saving
Low insertion
RoHS Compliant
