Zurück zur Projektübersicht
Download Datenblatt

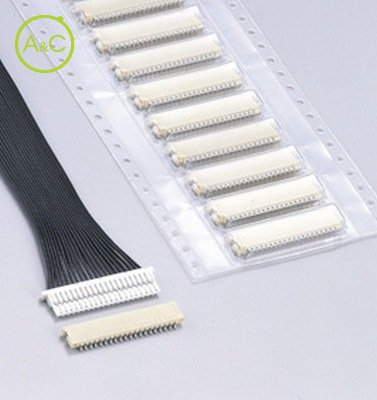

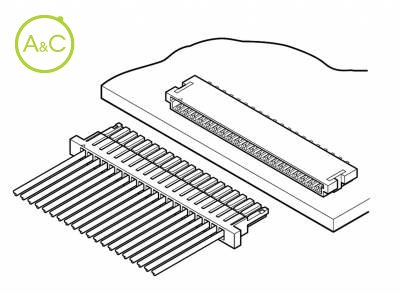

Side Entry Header SMT
- SHL CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
- 5
- 6
- 7
- 8
- 10
- 11
- 12
- 14
- 16
- 20
- 22
- 26
- 30
| Article Number | SM02B-SHLS-TF |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM05B-SHLS-TF |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM06B-SHLS-TF |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM07B-SHLS-TF |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM08B-SHLS-1-TF | SM08B-SHLS-TF |
| Number Of Contacts | 8 | 8 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark | Offset type | Normal type |
| Article Number | SM10B-SHLS-TF |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM11B-SHLS-TF |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM12B-SHLS-TF |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM14B-SHLS-1-TF | SM14B-SHLS-TF |
| Number Of Contacts | 14 | 14 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark | Offset type | Normal type |
| Article Number | SM16B-SHLS-TF |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM20B-SHLS-1-TF | SM20B-SHLS-TF |
| Number Of Contacts | 20 | 20 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A | 1.0 A |
| Rated Voltage (ac/dc) | 50 V | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark | Offset type | Normal type |
| Article Number | SM22B-SHLS-TF |
| Number Of Contacts | 22 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM26B-SHLS-TF |
| Number Of Contacts | 26 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
| Article Number | SM30B-SHLS-TF |
| Number Of Contacts | 30 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | / |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Thin design, mounting height is only 1.8mm (.071 inches) for normal type, and 1.4mm (.055 inches) for off-set type.
Low insertion force, with the contact of unique construction featuring spring action, its insertion into the housing is easy, yet with clear click feeling.
Deformation preventive design. Contact is designed to prevent the deformation during the crimping operation.
Thin design
The height after mounting on the PC board is only 1.8mm (.071") for normal type, and 1.4mm (.055") for off-set type.
Low insertion force
The contact has a clear click feeling. Spring action and unique design of the contact makes contact insertion into the housing easy, and contact pressure is retained after repeated mating/unmating.
Deformation preventative design
The contact has a deformation preventative configuration, which, in spite of the very thin design of the connector, is resistant to distortion.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
