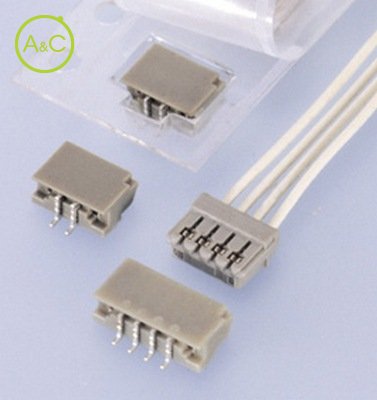

Side Entry Shrouded Header SMT

SSR CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	SM02B-SSR-H-TB
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM03B-SSR-H-TB
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM04B-SSR-H-TB
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM05B-SSR-H-TB
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM06B-SSR-H-TB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM08B-SSR-H-TB
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM09B-SSR-H-TB
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM10B-SSR-H-TB
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM11B-SSR-H-TB
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM12B-SSR-H-TB
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM13B-SSR-H-TB
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	SM14B-SSR-H-TB
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.00 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

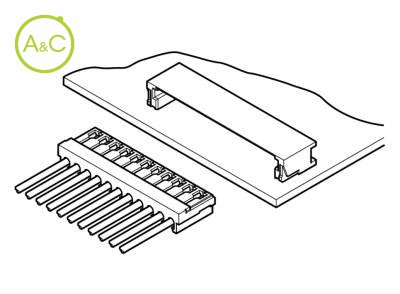

Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Ultra-compact 1.0mm (.039") pitch and only 2.0mm (.079") high and 4.5mm (.177") thick. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connectiion. 3-Point grip construction The 3-point insulation grip feature and the strain relief ensure a firm grip on terminated wires and protection of the insulation displacement connection from possible damage. Header designed for vacuum pick and place robotics Although this shrouded header has locking features for its mating receptacle, there are no holes in the header shroud that would adversely effect vacuum gripping equipment. Since there is enough flat surface for secure vacuum gripping, this miniature surface mount connector is versatile for designers and economic for manufacturing. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
