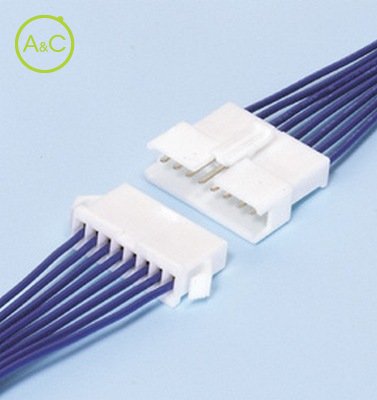

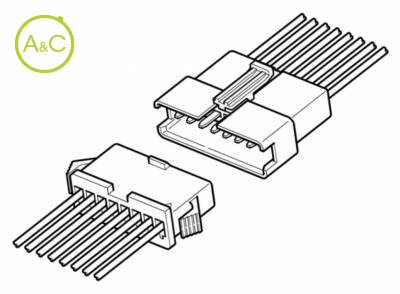

Plug Housing For Socket Contact

SM CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	SMP-02V-BC	SMP-02V-NC
Number Of Contacts	2	2
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-03V-BC	SMP-03V-NC
Number Of Contacts	3	3
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-04V-BC	SMP-04V-NC
Number Of Contacts	4	4
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-05V-BC	SMP-05V-NC
Number Of Contacts	5	5
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-06V-BC	SMP-06V-NC
Number Of Contacts	6	6
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-07V-BC	SMP-07V-NC
Number Of Contacts	7	7
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-08V-BC	SMP-08V-NC
Number Of Contacts	8	8
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-09V-BC	SMP-09V-NC
Number Of Contacts	9	9
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-10V-BC	SMP-10V-NC
Number Of Contacts	10	10
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-11V-BC	SMP-11V-NC
Number Of Contacts	11	11
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-12V-BC	SMP-12V-NC
Number Of Contacts	12	12
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Article Number	SMP-18V-BC	SMP-18V-NC
Number Of Contacts	18	18
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V
Remark	Black	Natural

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

The SM series are 2.5mm (.098") pitch, wire-to-wire connectors that perform reliably in high-density, small current applications. High contact pressure With each insertion and withdrawal, the mating contacts wipe against each other to remove foreign matter. Moreover, the socket contacts tolerate a large variation in mating post thickness without a reduction in their normally high contact pressure. These factors insure an especially long service life. Moreover, the design of the housing and contacts allows the contacts to be easily inserted into the housing. Highly reliable housing construction Since all the contacts are individually and totally surrounded by housing walls, the contacts are protected from deformation from outside sources of stress or from mismating. The polarized housing shape prevents reverse connection. Mountable on a variety of panels Due to our unique panel installation locking mechanisms, the housing can be easily installed on panels of various thicknesses without using tools. Arm lock mechanism An arm lock mechanism securely holds the plug and the receptacle together when they are connected. Standards UL Recognized E60389 CSA Certified LR20812 TUV R50120150 RoHS Compliant
