Female Terminal AWG 22 to 20
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 22 to 20
| Article Number | SNAC-A03T-M040 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| General Description | Disconnectable Crimp Style |
| Applicable Wire Size | 0.3 to 0.5 (AWG #22 to #20) mm² |
| Connection Type | Automotive |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 14 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

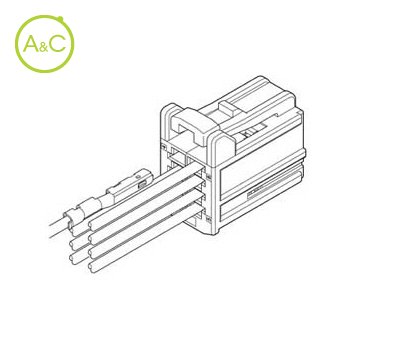

Low profile dual row connector compliant with the USCAR performance specifications.
For general automotive applications.
Compact design, Independent secondary lock (Terminal Position Assurance)
Accept 0.64 to 1.2mm Blade
2x4 circuit design
Standards
USCAR
RoHS Compliant
