Contact 32 to 28 AWG
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- 32 to 28 AWG
| Article Number | SSFD-003T-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.1mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.4 to 0.8 (AWG #32 to #28) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.1 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

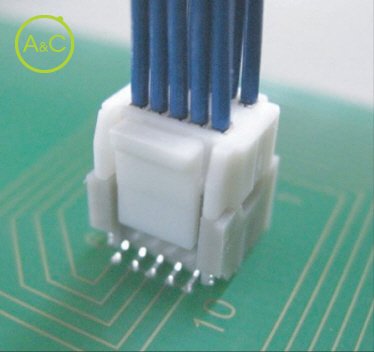

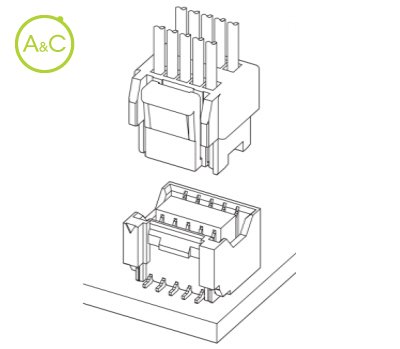

JST introduces the new SFD connector series, this LED backlight power supply surface mount connector is a crimp style wire to board connector that has been primarily designed and developed for LCD televisions.
This 10 position connector has a secure locking feature and is available in embossed tape reel packaging to enable high speed processing.
Conforming to the RoHS legislation, the housing and header are manufactured using halogen free materials.
Secure lock
Halogen free
EC directive 2002/95/EC (the RoHS Directive) - Compliant
