Applicable Wire
- AWG 30 to 28
| Article Number | SSFG-003T-P0.2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.1mm Pitch Disconnectable Crimp Style |
| Applicable Wire Size | 0.05 to 0.08 (AWG #30 to #28) mm² |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.1 mm |
| Rated Current (ac/dc) | 1.0 (WG #28) A |
| Rated Voltage (ac/dc) | 200 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

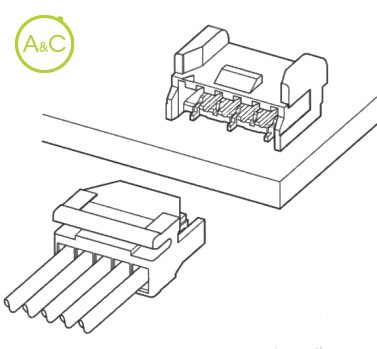

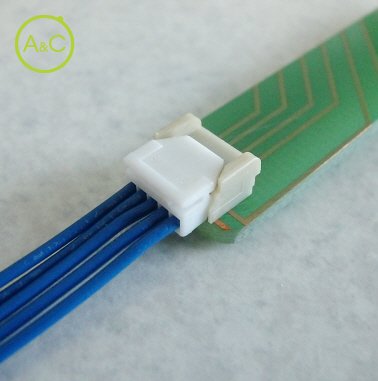

SFG Connector is a wire to board connector for connecting power supply to PCB and withstands high voltage. It is used for power supply of LED backlight in Liquid Crystal Display (LCD) Television sets.
Withstands high voltage
Secure lock
Halogen free
Tapered locking feature
EC Directive 2002/95/EC (the RoHS Directive) - Compliant
