Top Entry Type SMT Staggered Normal
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
Number Of Poles
- 9
Article Number | T09FAZ-SMT-TF |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1mm Pitch ZIF Connector For FFC |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.00 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
The FAZ series Zero Insertion Force (ZIF) connector has been developed as an SMT version of the existing FMZ connector.
Zero insertion force mechanism

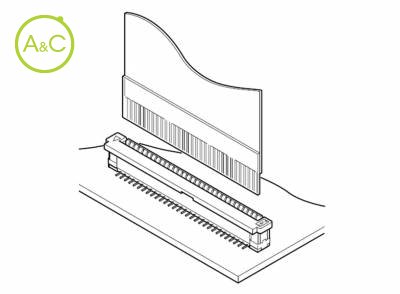

A ZIF mechanism improves wear resistance and extends the mating life of the connector. By moving the slider into it's locking position after the FFC has been inserted into the connector, the FFC leads are securely locked in place.
SMT configuration

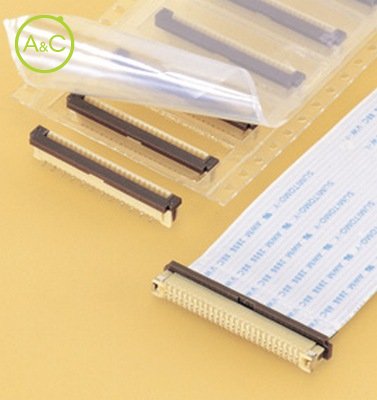

Due to it's small pitch and it's ability to be surface mounted, this connector meets today's demand for high-density packaging. Top entry and side entry versions are available. Top entry is available with either an in-line or a staggered solder tail footprint whilst the side entry version is available with FFC contact points on either the upper or lower sides.
Embossed taping for automatic mounting
This connector is supplied in embossed tape packaging, for mounting by automatic placement machines.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
