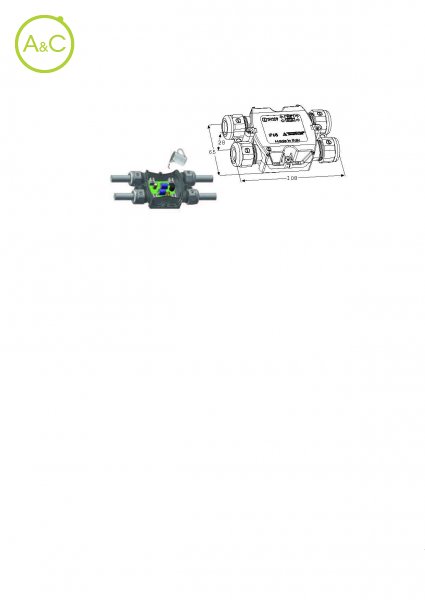

High protection Junction boxes empty and with terminal blocks

Waterproof
4 cable glands

THA.219.A1A

THA.219.A1A

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Protection Degree

IP54
IP68

Article Number	THA.219.A1B	THA.219.B1B	THA.219.C1B
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Inner Dimensions	54 mm x 40 mm x 24 mm	54 mm x 40 mm x 24 mm	54 mm x 40 mm x 24 mm
Cable Diameter Min-max A	7,0 - 14,0 mm	7,0 - 9,5 mm	7,0 - 9,5 mm
Cable Diameter Min-max B	7,0 - 14,0 mm	7,0 - 14,0 mm	7,0 - 9,5 mm
Cable Entries/exits	4 ways	4 ways	4 ways
T Marking	T85 16A 1,5 mm² °C	T85 16A 1,5 mm² °C	T85 16A 1,5 mm² °C
Protection Degree Details	0,5 bar (5m/3h)	0,5 bar (5m/3h)	0,5 bar (5m/3h)
Body	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Lock Nuts	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE-V	TPE-V	TPE-V
Co-moulded Seal Of Lid	SEBS	SEBS	SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel
Standards	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance
Note	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm

Article Number	THA.219.A1A	THA.219.B1A	THA.219.C1A
Upper Temperature	+125 °C	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Inner Dimensions	54 mm x 40 mm x 24 mm	54 mm x 40 mm x 24 mm	54 mm x 40 mm x 24 mm
Cable Diameter Min-max A	7,0 - 14,0 mm	7,0 - 9,5 mm	7,0 - 9,5 mm
Cable Diameter Min-max B	7,0 - 14,0 mm	7,0 - 14,0 mm	7,0 - 9,5 mm
Cable Entries/exits	4 ways	4 ways	4 ways
T Marking	T85 16A 1,5 mm² °C	T85 16A 1,5 mm² °C	T85 16A 1,5 mm² °C
Protection Degree Details	0,5 bar (5m/3h)	0,5 bar (5m/3h)	0,5 bar (5m/3h)
Body	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V2 GWT 850°C black - grey RAL 7035
Lock Nuts	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035	PA66 FV UL94 V0 GWT 960°C black - grey RAL 7035
Grommets	TPE-V	TPE-V	TPE-V
Co-moulded Seal Of Lid	SEBS	SEBS	SEBS
Fixing Screws Of Lid	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel	M3 x 12,0 mm inox stainless steel
Standards	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance	TEST REPORT EN60529:1991+A1:2000 IP54: 2.6 l/min 10 min IP68: 5 MT-PROOF 3 h IP66: 100 l/min 3 min EN60998-1:2004 heating resistance
Note	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm	∅ cable min-max 7,0 - 9,5 mm CH 19,0 mm ∅ cable min-max 7,0 - 14,0 mm CH 24,0 mm
