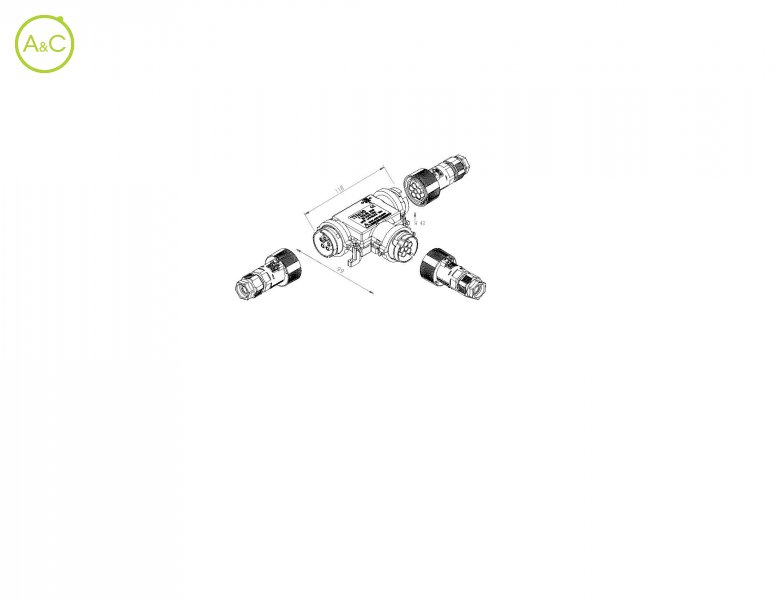

16A/ 24A current distributor
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Techno
Techno
Number Of Poles
- 2
- 3
- 5
- 6
| Article Number | THH.631.B2A | THP.631.B2A |
| Number Of Contacts | 2 | 2 |
| Protection Degree | IP65 | IP65 |
| Upper Temperature | +125 °C | +125 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 400 | 400 |
| Pollution Degree | 2 | 2 |
| Rated Current | 25 A | 17.5 A |
| Plug - Socket | 2 output: PLUG THB.405 1 input: SOCKET THB.405 | 2 output: PLUG THB.405 1 input: SOCKET THB.405 |
| Contact Terminal | Contact screw terminals for cable section < 1,0 mm² | Piercing clip terminal max 1,5 mm² |
| Terminals | Screw | Piercing |
| Min-max Cable Diameter | 7,0 - 14,0 mm | 7,0 - 14,0 mm |
| Cable Entries/exits | 3 ways | 3 ways |
| T Marking | T85 °C | T85 °C |
| Impulse Withstand Category | II | II |
| Impulse Withstand Voltage | 4 kV | 4 kV |
| Tracking Index | PTI 175 | PTI 175 |
| Distributor And Connector Housing | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 | PA66 UL94 V0/V2 GWT 850°C black - grey RAL7035 |
| Grommets | TPE/SEBS | TPE/SEBS |
| Seals | TPE/SEBS | TPE/SEBS |
| Fixing Screws Of Lid | M3 x 12,0 mm inox stainless steel self-locking screw | M3 x 12,0 mm inox stainless steel self-locking screw |
| Standards | EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000 | EN60998-1:2004 HEATING RESISTANCE EN61984:2001 EN60529:1991+A1:2000 |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
