Contact AWG 28 to 20
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 24 to 20
- AWG 28 to 22
| Article Number | SXA-001T-P0.6 | SXAM-001T-P0.6 |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Applicable Wire Size | 0.08 to 0.33 (AWG #28 to #22) mm² | 0.08 to 0.33 (AWG #28 to #22) mm² |
| Connection Type | Wire to Wire Connectors | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm | 2.50 mm |
| Rated Current (ac/dc) | 3 A | 3 A |
| Rated Voltage (ac/dc) | 250 V | 250 V |
| Remark | Secure locking device | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

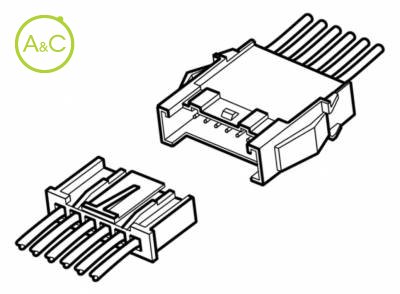

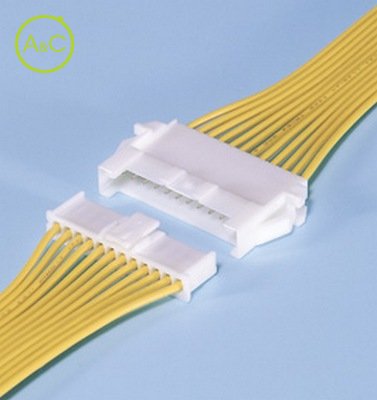

2.5mm (.098") pitch wire-to-wire connector that can mate with the socket of XA connector (board-to-wire type). Reliable secondary retainer is available. Panel mount is applicable.
Possible to mate with the existing XA socket
The wire-to-wire connection with the existing XA socket is possible.
Inner type contact lance
Inner type contact lance with stabilizer function provides stable contact retention force without deformation of the lance, and clear click feeling towards housing.
Mountable on a variety of panels
Possible to mount on panels of 0.5mm (.020") to 2.0mm (.079") thick. The design prevents from reverse mating and wire tangling toward panel section.
Secondary retainer
The secondary retainer enhance safety in case of partial insertion or accidental release of the contact.
Secure lock construction
Secure lock construction prevents accidental diSConnection because of routing of wires or of vibration, and also reverse and different circuit numbers mating.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
