Zurück zur Projektübersicht
Download Datenblatt
Receptacle Housing
- XAD CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 8
- 10
- 12
- 14
- 16
- 18
- 20
- 22
- 24
- 26
- 28
- 30
- 32
- 34
- 36
- 40
| Article Number | XADR-08V |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-10V |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-12V |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-14V |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-16V |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-18V |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-20V |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-22V |
| Number Of Contacts | 22 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-24V |
| Number Of Contacts | 24 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-26V |
| Number Of Contacts | 26 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-28V |
| Number Of Contacts | 28 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-30V |
| Number Of Contacts | 30 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-32V |
| Number Of Contacts | 32 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-34V |
| Number Of Contacts | 34 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-36V |
| Number Of Contacts | 36 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
| Article Number | XADR-40V |
| Number Of Contacts | 40 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 2.5mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 2.50 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 250 V |
| Remark | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

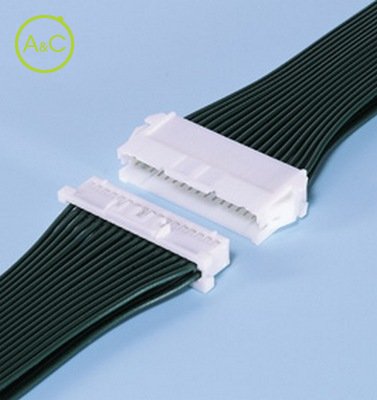

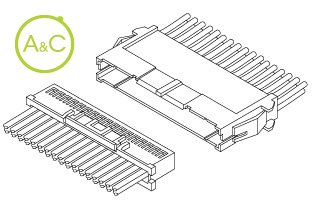

2.5mm (.098") pitch grid (dual in row) wire to wire connector that can mate with the socket of XAD connector (board-to-wire type).
Possible to mate with the existing XAD socket
The wire-to-wire connection with the existing XAD socket is possible.
Inner type contact lance
Inner type contact lance with stabilizer function provides stable contact retention force without deformation of the lance, and clear click feeling towards housing.
Mountable on a variety of panels
Possible to mount on panels of 0.5mm (.020") to 2.0mm (.079") thick. The design prevents from reverse mating and wire tangling toward panel section.
Secure lock construction
Secure lock construction prevents accidental diSConnection because of routing of wires or of vibration, and also reverse and different circuit numbers mating.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
