Receptacle Housing for XMA Connector

XMA CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	XMAR-02VF-1-S	XMAR-02VF-2-R	XMAR-02VF-3-E
Color	White	Red	Blue
Number Of Contacts	2	2	2
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V	250 V

Article Number	XMAR-03VF-1-S	XMAR-03VF-2-R	XMAR-03VF-3-E
Color	White	Red	Blue
Number Of Contacts	3	3	3
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors	Wire to Wire Connectors	Wire to Wire Connectors
Pitch / Style	2.50 mm	2.50 mm	2.50 mm
Rated Current (ac/dc)	3 A	3 A	3 A
Rated Voltage (ac/dc)	250 V	250 V	250 V

Article Number	XMAR-04VF-S
Color	White
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V

Article Number	XMAR-05VF-S
Color	White
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V

Article Number	XMAR-06VF-S
Color	White
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable Crimp Style
Connection Type	Wire to Wire Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

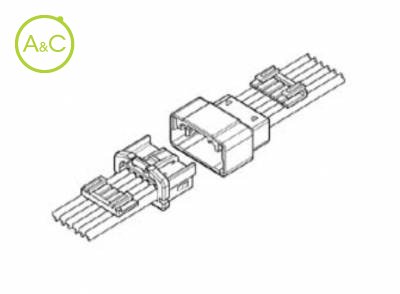

This connector is a 2.5mm pitch wire-to-wire connector, having incomplete mating prevention mechanism. 2 circuit and 3 circuit connectors have control key to prevent connector from mating with incorrect circuits, thus, several same circuit connectors can be used. Inertial lock structure with side lock mechanism 3 type combination of control key with one kind of circuit Secure locking structure Finger-friendly design RoHS Compliant
