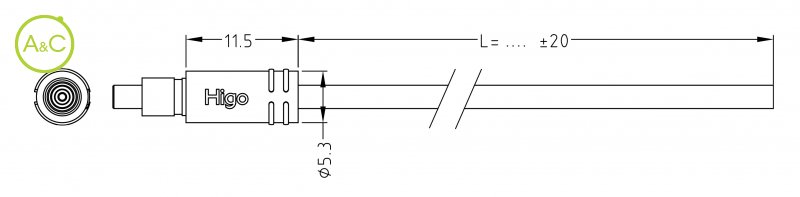

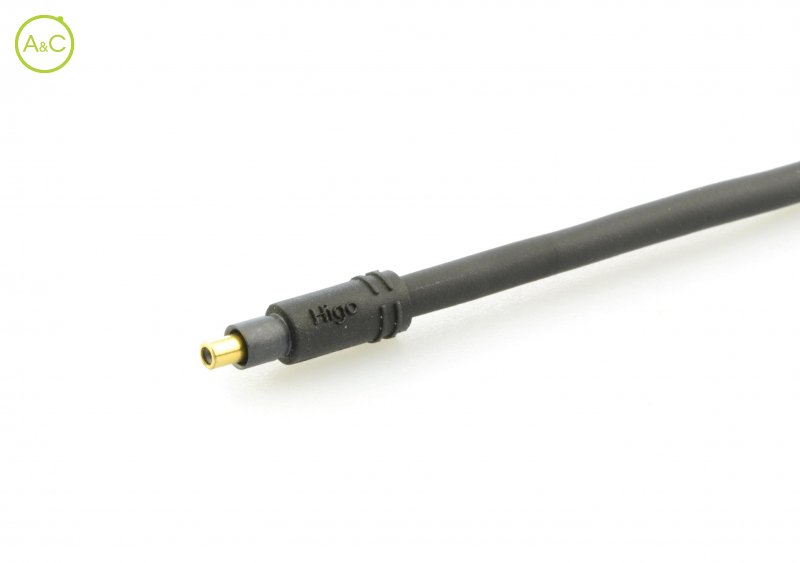

Micro B Female plug connector

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Number Of Poles

  • 2
Article Number Z205BM P 00 DS 1000 Z205BM P 00 AW 1000 Z205BM P 00 S4 1000
Color Black Black Black
Connector Diameter 5.3 mm 5.3 mm 5.3 mm
Wire Section 2 x 0,14 mm² 2 x 0,14 mm² 2 x 0,34 mm²
Cable Length 1000 mm 1000 mm 1000 mm
Protection Degree IP67 IP67 IP67
Mating Cycles 200 times 200 times 200 times
Upper Temperature 80 °C 80 °C 80 °C
Lower Temperature -25 °C -25 °C -25 °C
Rated Voltage 48 V AC / 60 V DC 48 V AC / 60 V DC 48 V AC / 60 V DC
Max. Contact Resistance ≤10 mΩ ≤10 mΩ ≤10 mΩ
Material Of Contact Phosphor Bronze Phosphor Bronze Phosphor Bronze
Cable Diameter 2.4 mm 2.4 mm 3.9 mm
Insulation Wire FEP FEP FEP
Remark Other cable length/type on request Other cable length/type on request Other cable length/type on request
Rated Current 2 A 2 A 2 A
Max. Insulation Resistance ≥20 MΩ ≥20 MΩ ≥20 MΩ
Contact Plating Gold over Nickel Gold over Nickel Gold over Nickel
Fitting Length 29.5 mm 29.5 mm 29.5 mm
Material Jacket PVC TPU TPU
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
