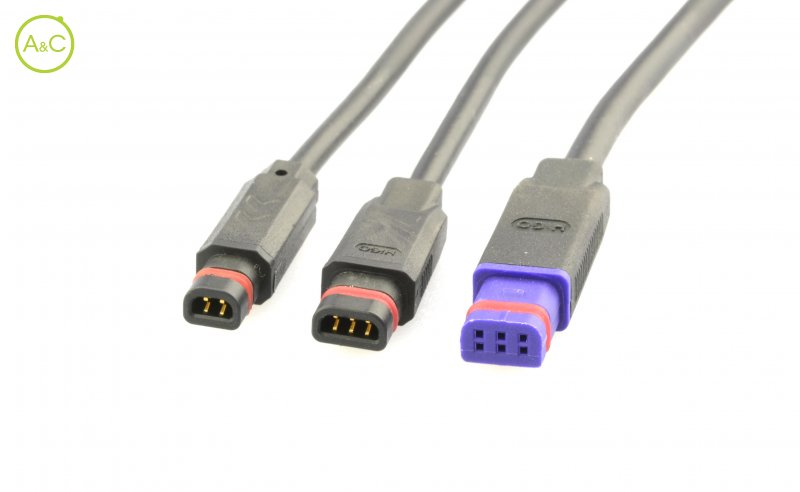

Micro T Female plug connector

Haben Sie Fragen zu diesem Produkt?

Weitere Informationen über diese Marke:

Article Number	Z206TM P 00 DS 1000
Color	Black

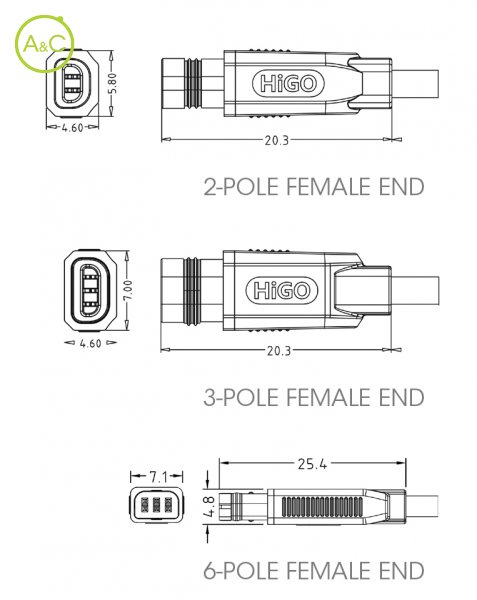

Connector Diameter	4,6 x 5,8 mm
Wire Section	2 x 0,14 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Cable Diameter	2.8 mm
Insulation Wire	FEP
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	35 mm
Material Jacket	PVC

Article Number	Z307TM P 00 D2 1000
Color	Black
Connector Diameter	4,6 x 7,0 mm
Wire Section	3 x 0,14 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Cable Diameter	2.8 mm
Insulation Wire	FEP
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	35 mm
Material Jacket	PVC

Article Number	Z607TM P 00 DY 1000
Color	Purple
Connector Diameter	4,8 x 7,1 mm
Wire Section	6 x 0,08 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Phosphor Bronze
Cable Diameter	2.8 mm
Insulation Wire	FEP
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	45 mm
Material Jacket	PVC

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
