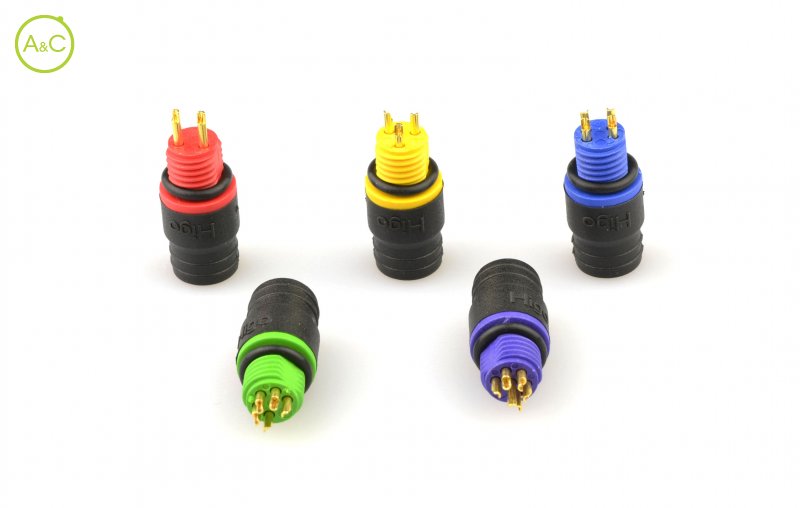

Mini B Female panel mount connector

Solder cup contacts

Z209BMC02000000

Z209BMC02000000

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt Download Datei

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
6

Article Number	Z209BM C 02 00 0000
Color	Red
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z309BM C 02 00 0000
Color	Yellow
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z409BM C 02 00 0000
Color	Blue
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z509BM C 02 00 0000
Color	Green
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Article Number	Z609BM C 02 00 0000
Color	Purple
Connector Diameter	9 mm
Wire Section	0,14 /0,2 mm²
Protection Degree	IP66
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	42 mm
Contact Type	Solder cup contacts

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
