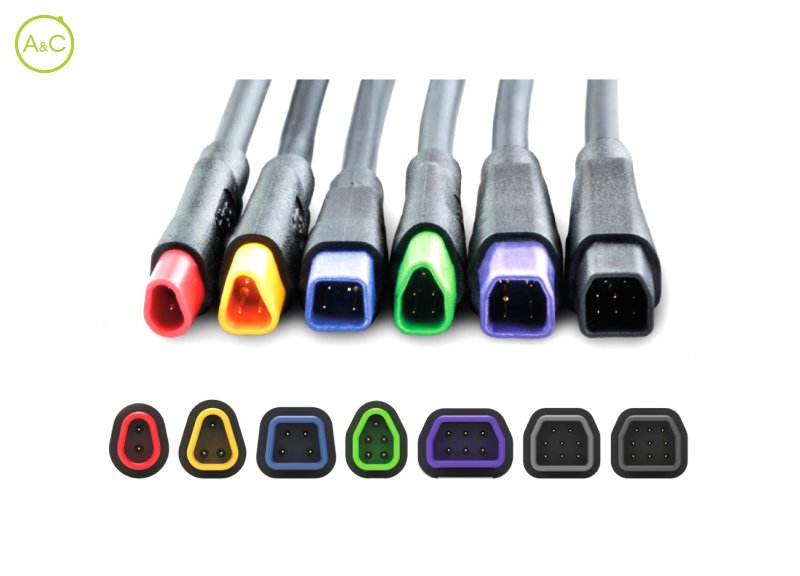

Mini F male cable connector

Z209FGP00A01000

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Weitere Informationen über diese Marke:

Number Of Poles

2
3
4
5
6
8
9

Article Number	Z209FG P 00 A0 1000	Z209FG P 00 AW 1000
Color	Red	Red
Connector Diameter	see drawing mm	see drawing mm
Wire Section	0.2 mm²	0.2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66/IP67	IP66/IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	/	/
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	/	/
Fitting Length	54 mm	54 mm
Material Jacket	PVC	TPU

Article Number	Z309FG P 00 A1 1000	Z309FG P 00 AX 1000
Color	Yellow	Yellow
Connector Diameter	see drawing mm	see drawing mm
Wire Section	0.2 mm²	0.2 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66/IP67	IP66/IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	/	/
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	/	/
Fitting Length	54 mm	54 mm
Material Jacket	PVC	TPU

Article Number	Z409FG P 00 A2 1000	Z409FG P 00 AY 1000
Color	Blue	Blue
Connector Diameter	see drawing mm	see drawing mm
Wire Section	0.14 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP66/IP67	IP66/IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	/	/
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	/	/
Fitting Length	54 mm	54 mm
Material Jacket	PVC	TPU

Article Number	Z509FG P 00 A3 1000
Color	Green
Connector Diameter	see drawing mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	/
Cable Diameter	3.7 mm
Insulation Wire	PVC
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	/
Fitting Length	54 mm
Material Jacket	PVC

Article Number	Z609FG P 00 A4 1000
Color	Purple
Connector Diameter	see drawing mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	/
Cable Diameter	3.7 mm
Insulation Wire	PVC
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	/
Fitting Length	54 mm
Material Jacket	PVC

Article Number	Z809FG P 00 DL 1000
Color	Grey
Connector Diameter	see drawing mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	/
Cable Diameter	4.2 mm
Insulation Wire	FEP
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	/
Fitting Length	54 mm
Material Jacket	PVC

Article Number	Z909FG P 00 DN 1000
Color	Grey
Connector Diameter	see drawing mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP66/IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	/
Cable Diameter	5.8 mm
Insulation Wire	PVC
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	/
Fitting Length	54 mm
Material Jacket	PVC

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
