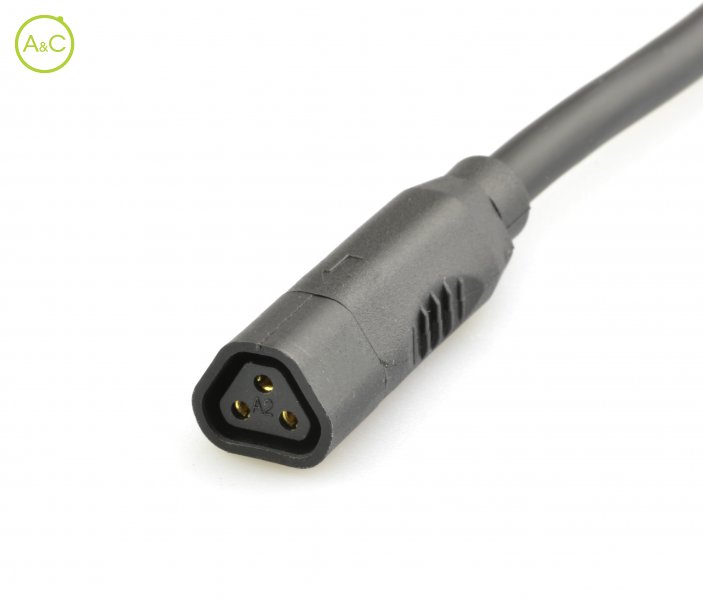

Female cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Number Of Poles
- 3
Article Number | Z310DM P 00 FC 1000 |
Color | Black |

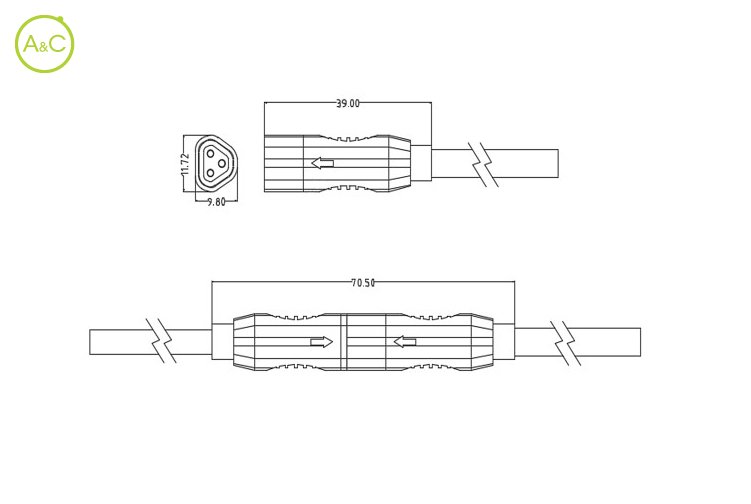

Connector Diameter | 11,72 x 9,8 mm |
Wire Section | 3 x 1,2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper Alloy |
Cable Diameter | 5 mm |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 15 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 71 mm |
Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
