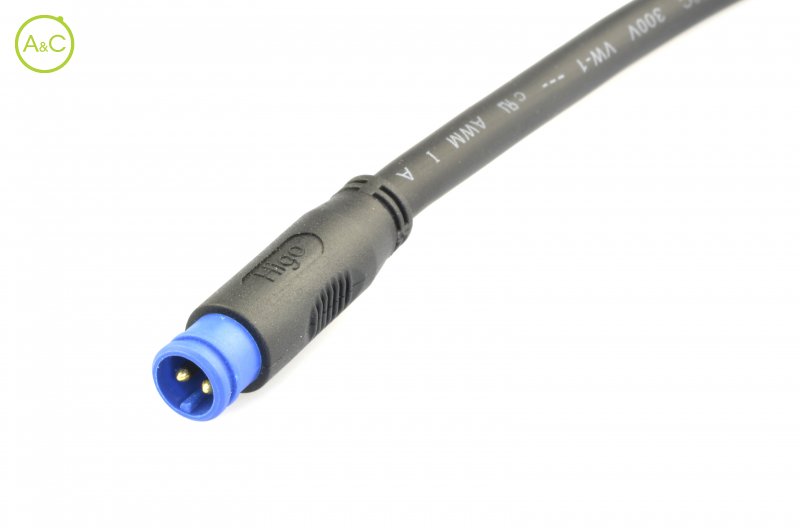

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Higo
Number Of Poles
- 4 (2+2)
| Article Number | Z409EGP 00 FE 1000 | Z409EGP 00 D5 1000 |
| Color | Blue | Bleu |

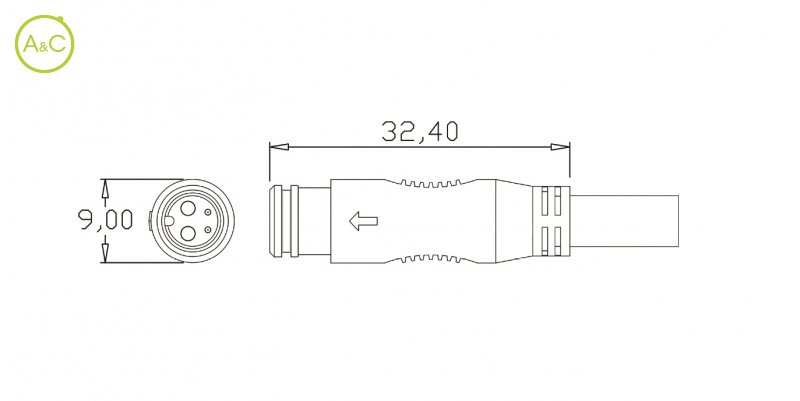

| Connector Diameter | 9 mm | 9 mm |
| Wire Section | 2 x 1,0 + 2 x 0,14 mm² | 2 x 1,0 + 2 x 0,14 mm² |
| Cable Length | 1000 mm | 1000 mm |
| Protection Degree | IPX7 | IPX7 |
| Mating Cycles | 200 times | 200 times |
| Upper Temperature | 80 °C | 80 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ | ≤10 mΩ |
| Material Of Contact | Copper Alloy | Copper Alloy |
| Cable Diameter | 5.5 mm | 5.5 mm |
| Insulation Wire | FEP | FEP |
| Remark | Other cable length/type on request | Other cable length/type on request |
| Rated Current | 10 / 2 A | 10 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ | ≥20 MΩ |
| Contact Plating | Gold over Nickel | Gold over Nickel |
| Fitting Length | 61 mm | 61 mm |
| Material Jacket | PVC | TPU |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
