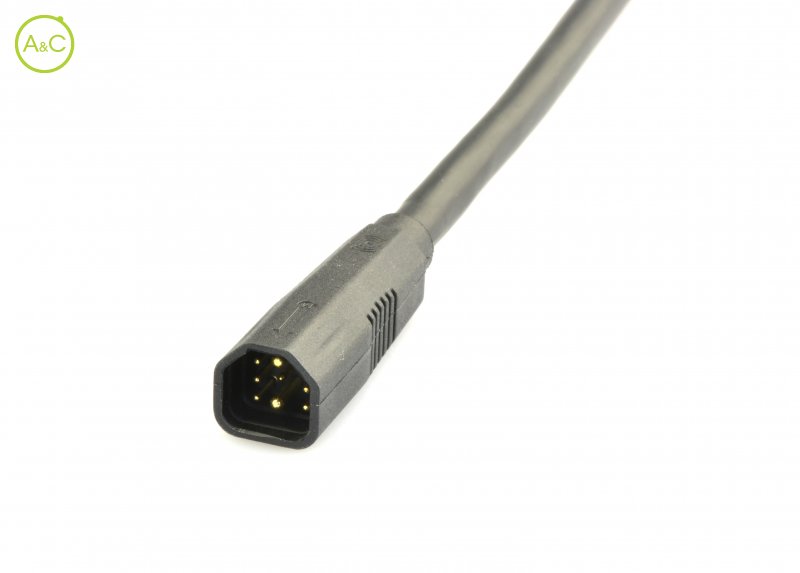

Male cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Higo
Number Of Poles
- 9 (2+7)
| Article Number | Z913CG P 00 FA 0000 |
| Color | Black |

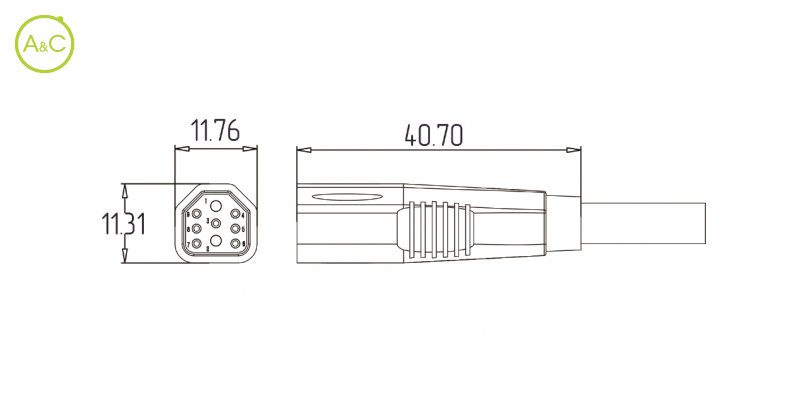

| Connector Diameter | 11,30 x 11,75 mm |
| Wire Section | 2 x 1,5 + 7 x 0,15 mm² |
| Cable Length | 1000 mm |
| Protection Degree | IPX7 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Copper Alloy |
| Cable Diameter | 5.8 mm |
| Insulation Wire | FEP |
| Remark | Other cable length/type on request |
| Rated Current | 15 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Fitting Length | 71 mm |
| Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
