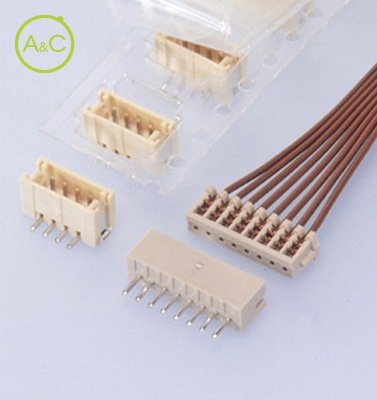

Receptacle AWG#30 Natural/Grey

ZR CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Number Of Poles

Article Number	02ZR-3H-P
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	03ZR-3H-P
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	04ZR-3H-P
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	05ZR-3H-P
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	06ZR-3H-P
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	07ZR-3H-P
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	08ZR-3H-P
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	09ZR-3H-P
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	10ZR-3H-P
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	11ZR-3H-P
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	12ZR-3H-P
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	13ZR-3H-P
Number Of Contacts	13
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	1.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	1.50 mm
Rated Current (ac/dc)	0.7 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

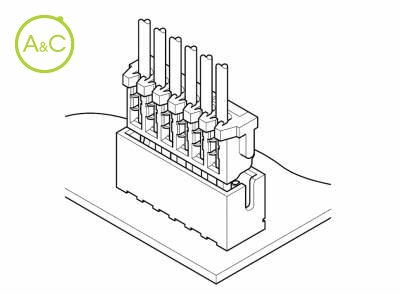

The twin U-slots (IDC slots), the 3-point insulation grip, and the distortion resistant diSConnectable construction ensure a reliable connection even during severe environmental conditions. Compact Only 5.5mm (.217") high and 3.5mm (.138") thick. Twin U-slot insulation displacement section The insulation displacement section connected to each wire consists of two tin-plated slots (twin U-slots), which ensures reliable connecton. 3-point grip construction The 3-point insulation grip feature and the strain relief ensure a grip on terminated wires and protection of the insulation displacement connection from possible damage. Distortion resistant construction The header is fully shrouded and thus protects the receptacle from damage that could be caused by mating the connectors at an angle or otherwise mismating the connectors. Compatible with the ZH crimp style connector The same shrouded header can be used for either the ZR IDC type connector or the ZH crimp style connector. This allows both types of connector to be used interchangeably without replacing the header. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R9351092 RoHS Compliant
