Receptacle for LEB Connector
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 1
- 2
| Article Number | 01R-LEBSS-TB |
| Number Of Contacts | 1 |
| Upper Temperature | +105 °C |
| Lower Temperature | -55 °C |
| General Description | LED Connectors (4.0mm Pitch Disconnectable Crimp & Board to Board Style) |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 4.0 mm |
| Rated Current (ac/dc) | 3 A |
| Rated Voltage (ac/dc) | 300 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

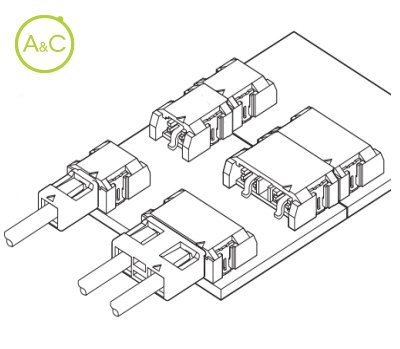

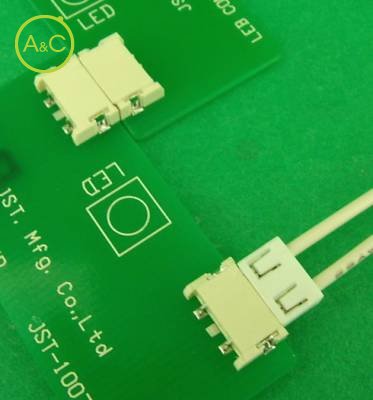

LED Connectors – The LEB Connector is a low profile wire-to-board, board-to-board connector that is designed for LED lighting applications. With a height of 2.7mm this surface mount connector is low profile and space saving, providing flexibility for various LED applications that require high performance connectors in tight spaces.
The unique fork type contact provides a stable contact performance.
This wire-to-board and board-to-board connector series is currently available in 1 and 2 circuits, rated at 3A AC, DC at 300V AC, DC.
Absorption misalignment mechanism (only connector pitch direction)
The PCB layout is in common with plug and receptacle connectors
Mechanism for preventing wrong insertion
Crimp type socket that is mated with receptacle connector is available
Considering of JIS C 8121-2-2-2009 (IEC 60838-2-2-2006) [MiSCellaneous lamp holders - Part 2-2: Particular requirements - Connectors for printed circuit board based LED modules] But it is not completely corresponded
RoHS Compliant
