Receptacle AWG#28 Green

NRD CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	02NR-D8M-P
Number Of Contacts	2
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	03NR-D8M-P
Number Of Contacts	3
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	04NR-D8M-P
Number Of Contacts	4
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	05NR-D8M-P
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	06NR-D8M-P
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	07NR-D8M-P
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	08NR-D8M-P
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	09NR-D8M-P
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	10NR-D8M-P
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	12NR-D8M-P
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	14NR-D8M-P
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	16NR-D8M-P
Number Of Contacts	16
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Disconnectable IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	2 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Characteristics differ between variants of a connector

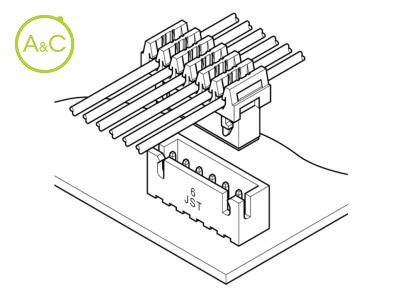

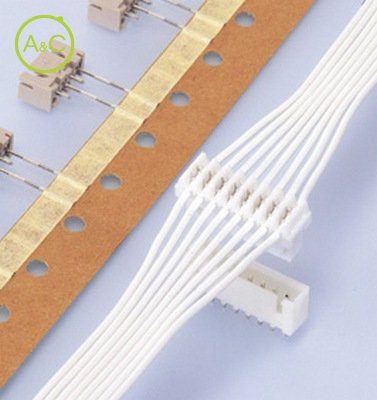

This 2.5mm (.098") pitch insulation displacement connector is another version of the NR connector for printed circuit boards. The NRD connector allows daisy chaining and is very useful in simplifying connection systems in electronic equipment. Daisy chain connection The connection shown in the figure is commonly called "daisy chain connections" or "through connections". With these simple connections, many signals can be bussed to many different printed circuit boards. The NRD connector is constructed to allow such daisy chain connections. Reliable insulation displacement construction The contact is identical to that of the NR connector which has an established reputation for superb reliability. Strain relief Two strain relief sections are provided on the housing to decouple vibration, bending forces and other external stresses from the insulation displacement section. Interchangeability The shrouded header is interchangeable with the XH connectors (crimp style), the NR connectors (IDC style), and the JQ connectors (board-to-board style). Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R85272 RoHS Compliant
