Back to product overview
Download product sheet
Female Connector Gold-plated
- FHJ CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 16
- 18
- 20
- 21
- 24
| Article Number | 04FHJ-SM1-GAN-TB |
| Number Of Contacts | 4 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 05FHJ-SM1-GAN-TB |
| Number Of Contacts | 5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 06FHJ-SM1-GAN-TB |
| Number Of Contacts | 6 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 07FHJ-SM1-GAN-TB |
| Number Of Contacts | 7 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 08FHJ-SM1-GAN-TB |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 09FHJ-SM1-GAN-TB |
| Number Of Contacts | 9 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 10FHJ-SM1-GAN-TB |
| Number Of Contacts | 10 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 11FHJ-SM1-GAN-TB |
| Number Of Contacts | 11 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 12FHJ-SM1-GAN-TB |
| Number Of Contacts | 12 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 13FHJ-SM1-GAN-TB |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 14FHJ-SM1-GAN-TB |
| Number Of Contacts | 14 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 16FHJ-SM1-GAN-TB |
| Number Of Contacts | 16 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 18FHJ-SM1-GAN-TB |
| Number Of Contacts | 18 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 20FHJ-SM1-GAN-TB |
| Number Of Contacts | 20 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 21FHJ-SM1-GAN-TB |
| Number Of Contacts | 21 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Article Number | 24FHJ-SM1-GAN-TB |
| Number Of Contacts | 24 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.5mm Pitch Non-ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.50 mm |
| Rated Current (ac/dc) | 0.5 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

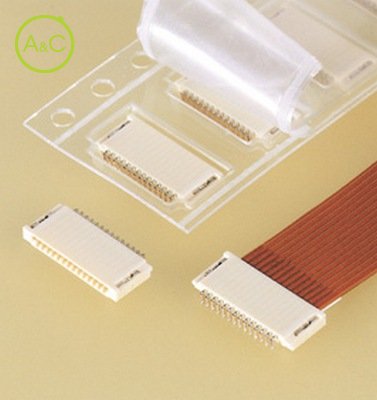

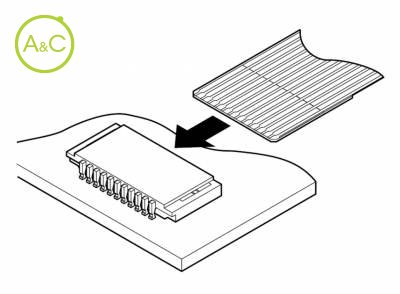

With only 1.2mm (0.47") height, the FHJ connector may be used with a standard 0.3mm (.012") thick FPC. Space-saving design. Two types of solder tails are available i.e. J-lead type tails are folded inward and G-lead type tails are folded outward for the inspection (IPK).
Ultra compact mounting space
Maintaining the performance of present 0.5mm (.020") pitch non-ZIF connector, more space-saving design has been achieved. J lead type, of which lead with solder is bent inward, and G lead type, that enables soldering inspection (IPK) after mounting, are available.
Heat resistant design suitable for surface mounting
The housing is made of heat resistant plastic to allow reflow soldering.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
