Receptacle for JE Connector
Do you have any questions about this product?
More info on this brand:
JST
Number Of Poles
- 5
- 7
- 9
- 11
- 13
- 15
- 17
- 19
Article Number | 05R-JE |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Pitch Board-to-Board Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

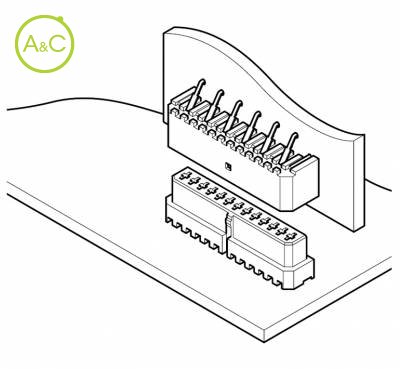

The JE connector is a compact, high density, board-to-board connector only 6.8mm (.268") high and 3.6mm (.142") wide. Its mating part has a 1.25mm (.049") pitch, single row construction. High contact pressure dual beam fork contacts are combined with a housing lock mechanism to ensure a reliable connection.
A compact high-density design to meet today's needs
The mating part has a 1.25mm (.049") pitch, single row construction. To meet the needs for high-density design, this compact, low-profile connector is only 6.8mm (.268") high and 3.6mm (.142") wide when mounted on the printed circuit board- roughly 40 percent smaller than our second smallest 2.0mm (.079") pitch model.
Secure locking and reliable connection
This connector features a high pressure, dual beam, fork contact. The secure housing lock ensure a highly reliable connection even under the severest environmental conditions.
Box shaped housing
Box-shaped housing prevents misinsertion. The plug fits securely into the mating receptacle for greater resistance to vibration.
Easy mounting and no flux problems
The contact solder tails can be easily clinched. This allows efficient, secure mounting onto printed circuit boards. The bottom of the connector housing is designed to prevent flux from adhering.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
