Female Connector for FH Connector

FH CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	06FH-SM1-TB
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	11FH-SM1-TB
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	14FH-SM1-TB
Number Of Contacts	14
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FH-SM1-TB
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch Non-ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

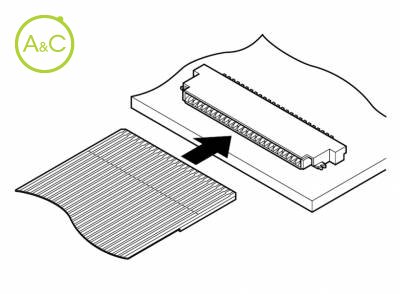

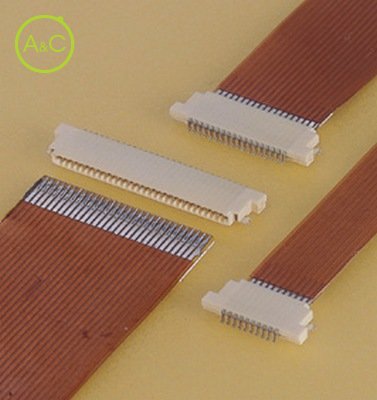

With a height of just 1.2mm and depth of 3.55mm, this 0.5mm pitch FPC connector is extremely low profile, which makes it an ideal connector for use in small and restricted environments. Featuring double-sided internal contact points, to facilitate top and bottom PCB placement, and using heat resistant materials. This connector is not only very universal, but is more than suitable for use in high re-flow temperature environments associated with lead free soldering. Double-sided contact The contact is double-sided, thus providing reliable connection with FPC. Applicable to standard FPC 0.3±0.05mm (.012"±.002") thick standard FPC can be used. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
