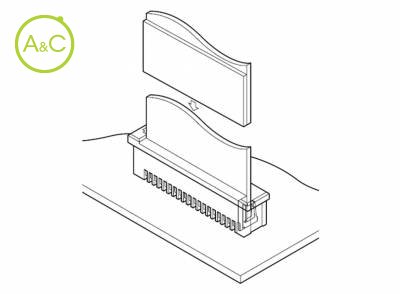

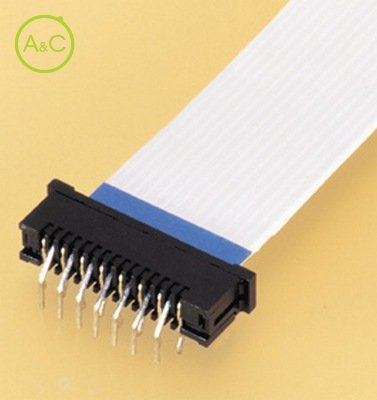

The FMZ series, a Zero Insertion Force (ZIF) connector series, was developed to increase wear resistance and extend the connector's mating life. It is a very compact connector with a thickness of only 4.2mm (.165") and a pitch of only 1.0mm (.039") and is thus useful for high-density packaging. The contact has a reliable double-leaf construction which provides stable connection. Zero insertion force mechanism A ZIF mechanism increases wear resistance and extends the connector's mating life. By moving the slide into it's locking position after an FFC is inserted into the connector with a low insertion force, the FFC leads are securely locked in place. Temporary retention feature After the FFC is inserted, but before the locking slide is actuated, a retention feature prevents the FFC leads from moving or coming out. This allows one handed operation and higher work efficiency. Compact This connector is very small with a mounting height of only 6.5m (.256") and a thickness of 4.2mm (.165") when locked. Double-leaf contact The slide mechanism and FFC are held and locked between the contact beams. This eliminates stress to the housing, provides high contact pressure and reliable connection. Standards UL Recognized E60389 CSA Certified LR20812 EC directive 2002/95/EC (the RoHS Directive) - Compliant
