Plug for 1.5FJ Connector
Do you have any questions about this product?
More info on this brand:
JST
Number Of Poles
- 8
- 16
Article Number | 08P-1.5FJ |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.5mm Pitch Board-to-Board Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.50 mm |
Rated Current (ac/dc) | 0.5 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

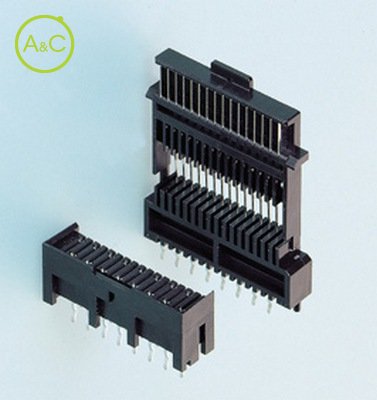

The plug consists of a unique flexible hinge that absorbs circuit board misalignment.
The flexible construction of the plug allows it to be mated after its PC boards are mounted in their enclosures. High-retention zigzag fork contacts.
Flexible connection absorbs circuit board misalignment

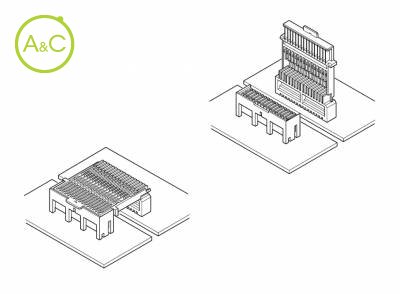

After the plug and header are mounted on adjoining boards, an extended hinged connection between them offers greater flexibility. The hinge compensates for slight misalignments between circuit boards to assure a secure connection even if the boards are out of line up to 1.0mm (.039").
Provides a low profile mount and allows connection after mounting
This compact, low profile design features 1.5mm (.059") pitch and slim 10.7mm (.421") mounting height. Board-to-board connection is easier because the connection can be made after the installation of the connector mounted printed circuit boards.
Assures a reliable connection
Superior reliability is assured even when the assembly is subjected to external stress and vibration. This sturdiness is due to a secure locking device and the use of JST's high retention zigzag fork contacts.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
