Side Entry Type Plug
Do you have any questions about this product?
More info on this brand:
JST
Number Of Poles
- 8
- 16
- 22
Article Number | 08PS-JED |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Pitch Board-to-Board Connector |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

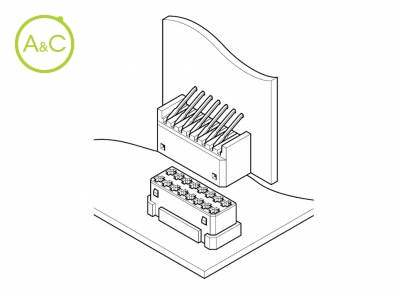

This 1.25mm (.049") pitch dual-in-line connector allows high-density packaging. Double-sided, high-pressure contacts and a housing locking feature provide reliable connections.
Compact, high-density design

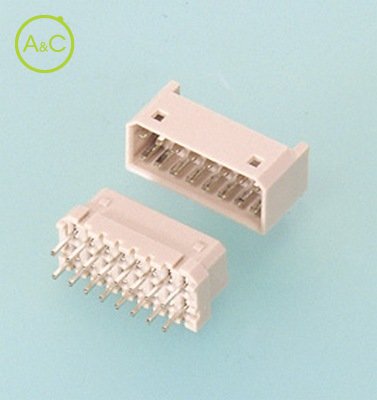

This small connector has a 1.25mm (.049") pitch dual-in-line construction at both the mating and printed circuit board sides. It has a mounting height of only 7.0mm (.278") and a thickness of 4.6mm (.181").
Positive housing lock provides a highly reliable connection
The high-pressure, double-sided, fork type contacts and a housing lock feature ensure continuity even when the connector is subjected to severe vibration or shock.
Polarized shrouded header
The polarized shrouded header prevents misinsertion or distortion of the receptacle housing during mating. The rigid mating mating between the plug and receptacle guarantees high reliability during vibration or shock.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
