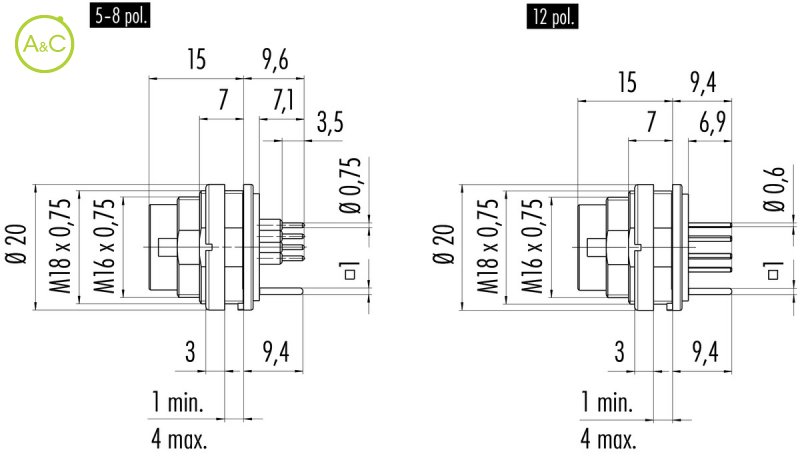

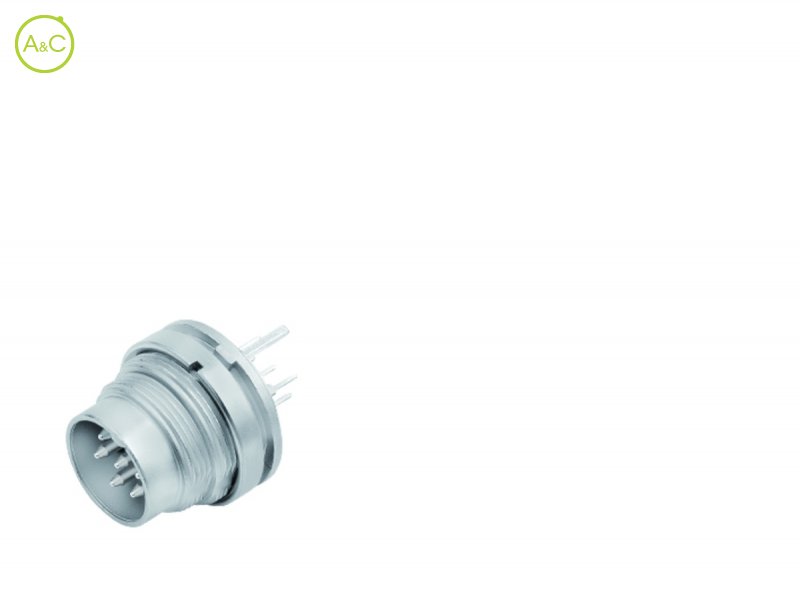

Male panel mount connector

Do you have any questions about this product?

More info on this brand:

Article Number	09 0315 290 05
Connector Diameter	20 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Material Of Insert	PBT ( UL 94 V-0)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 0323 290 06
Connector Diameter	20 mm
Number Of Contacts	6 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	1500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Material Of Insert	PBT ( UL 94 V-0)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 0473 290 08
Connector Diameter	20 mm
Number Of Contacts	8 DIN contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	5 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuZn (Brass)
Material Of Insert	PBT ( UL 94 V-0)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	09 0331 290 12
Connector Diameter	20 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M16)
Termination	Dip solder
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	500 V
Pollution Degree	1
Overvoltage Categorie	I
Material Group	III
Rated Current (40°)	3 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Material Of Insert	PBT ( UL 94 V-0)
Material Of Housing	Brass nickel plated / zinc diecasting nickel plated
Product sheet	Download product sheet

Characteristics differ between variants of a connector
