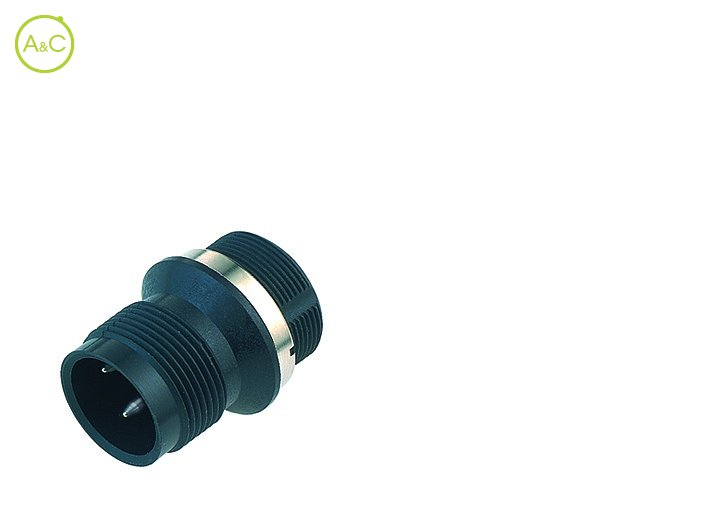

Male socket
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4
- 4 (UL)
| Article Number | 09 0441 81 04 |

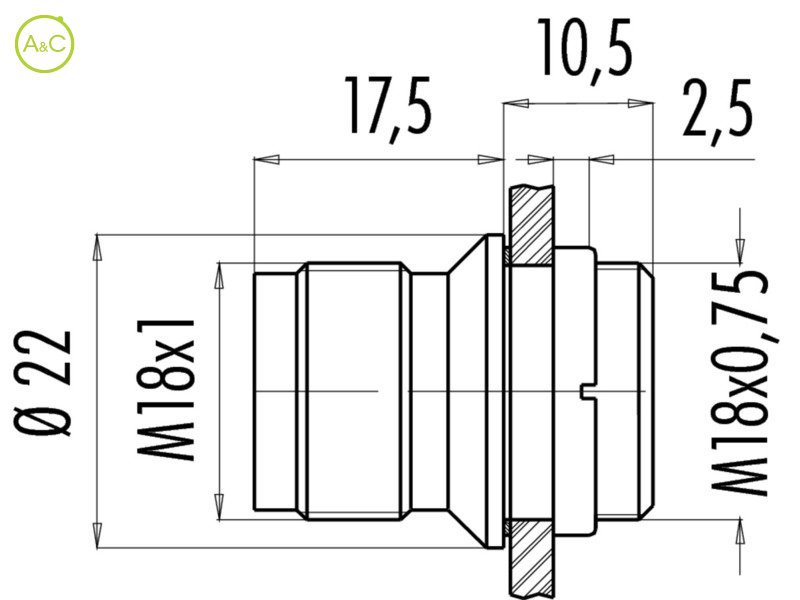

| Connector Diameter | 22 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M18) |
| Termination | Solder |
| Wire Section | 1.5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 4000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 16 A |
| Max. Contact Resistance | 8 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | CuSnZn (Optalloy), Sn (Tin) |
| Material Of Insert | PBT/PA |
| Material Of Housing | PBT/PA |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
