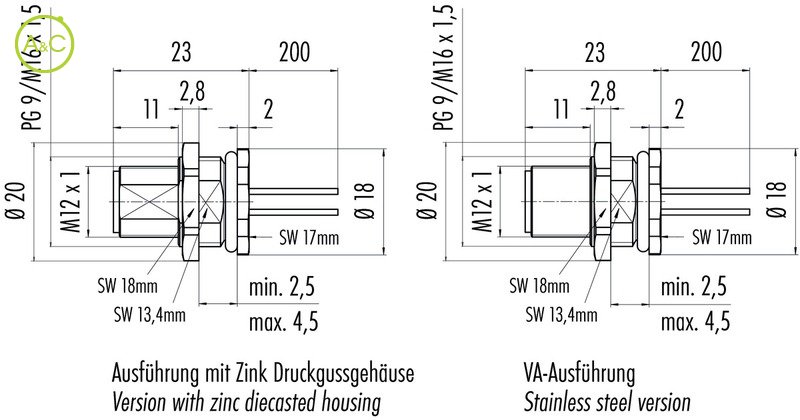

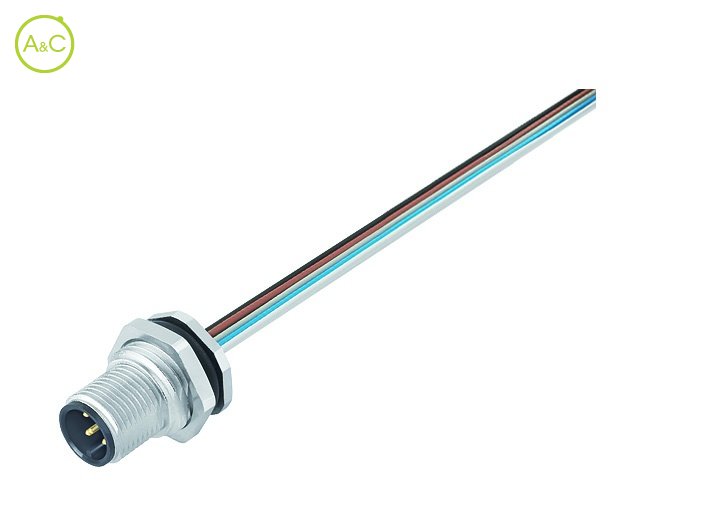

Male panel mount connector

Do you have any questions about this product?

More info on this brand:

Article Number	76 0531 1011 00004 0200	76 0631 1011 00004 0200
Old Article Number	09 3431 116 04	09 3431 120 04
Connector Diameter	20 mm	20 mm
Number Of Contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	250	250
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Product sheet	Download product sheet	Download product sheet

Article Number	76 0531 1011 00005 0200	76 2531 1111 00005 0200	76 0631 1011 00005 0200
Old Article Number	09 3441 116 05	09 3441 679 05	09 3441 120 05
Connector Diameter	20 mm	20 mm	20 mm
Number Of Contacts	5 contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	125	125	125
Rated Impuls Voltage	1500 V	1500 V	1500 V
Pollution Degree	3	3	3
Overvoltage Categorie	II	II	II
Material Group	II	II	II
Rated Current (40°)	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Stainless steel	Zinc diecasting nickel plated
Product sheet	Download product sheet	Download product sheet	Download product sheet

Article Number	76 0531 1011 00008 0200	76 2531 1111 00008 0200	76 0631 1011 00008 0200
Old Article Number	09 3481 116 08	09 3481 679 08	09 3481 120 08
Connector Diameter	20 mm	20 mm	20 mm
Number Of Contacts	8 contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	60	60	60
Rated Impuls Voltage	800 V	800 V	800 V
Pollution Degree	3	3	3
Overvoltage Categorie	II	II	II
Material Group	II	II	II
Rated Current (40°)	2 A	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Stainless steel	Zinc diecasting nickel plated
Product sheet	Download product sheet	Download product sheet	Download product sheet

Article Number	76 0531 1111 00012 0200	76 0631 1111 00012 0200
Old Article Number	09 3491 116 12	09 3491 120 12
Connector Diameter	20 mm	20 mm
Number Of Contacts	12 contacts	12 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires
Wire Section	0.14 mm²	0.14 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	500 V	500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	Zinc diecasting nickel plated	Zinc diecasting nickel plated
Product sheet	Download product sheet	Download product sheet

Characteristics differ between variants of a connector
