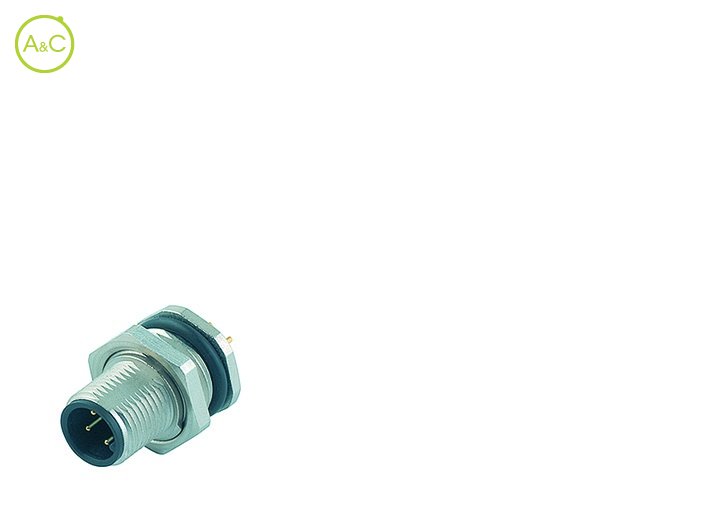

Male panel mount connector

Do you have any questions about this product?

More info on this brand:

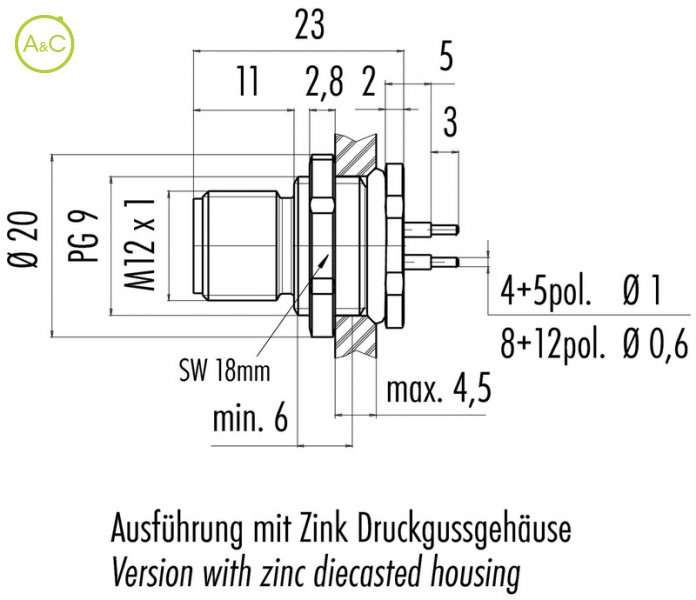

Article Number	86 0531 1000 00004
Old Article Number	09 3431 90 04
Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Wire Section	0.25 mm²
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	86 0531 1000 00005	86 2531 1100 00005
Old Article Number	09 3441 90 05	09 3441 680 05
Connector Diameter	20 mm	20 mm
Number Of Contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	60	60
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	Stainless steel
Product sheet	Download product sheet	Download product sheet

Article Number	86 0531 1000 00008	86 2531 1100 00008
Old Article Number	09 3481 90 08	09 3481 680 08
Connector Diameter	20 mm	20 mm
Number Of Contacts	8 contacts	8 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)
Termination	Dip solder	Dip solder
Wire Section	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68
Mating Cycles	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	30	30
Rated Impuls Voltage	800 V	800 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	II	II
Rated Current (40°)	2 A	2 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	Stainless steel
Product sheet	Download product sheet	Download product sheet

Article Number	86 0531 1100 00012
Old Article Number	09 3491 90 12
Connector Diameter	20 mm
Number Of Contacts	12 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Wire Section	0.14 mm²
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	30
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	II
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	brass/zinc diecasting nickel plated
Product sheet	Download product sheet

Characteristics differ between variants of a connector
