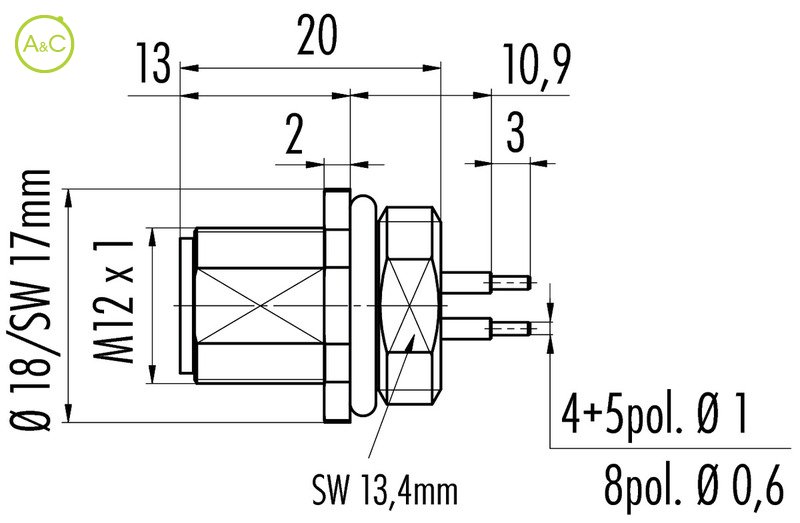

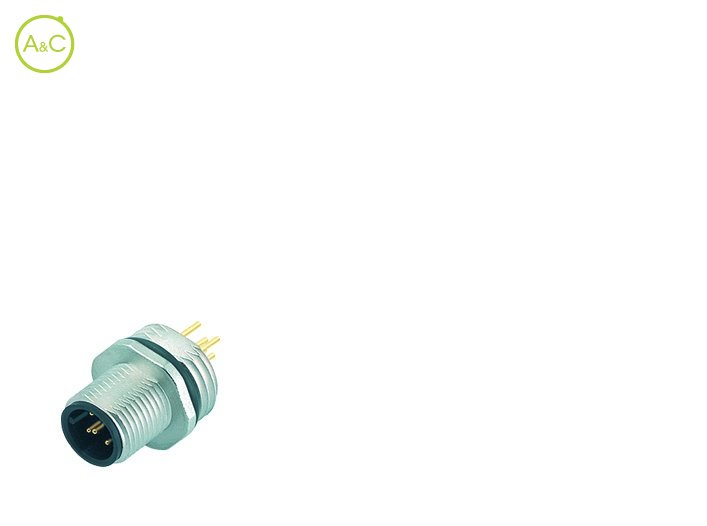

Male panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 5
| Article Number | 09 4445 88 05 |
| Connector Diameter | 18 mm |
| Number Of Contacts | 5 contacts |
| Connector Locking System | Screw (M12-B) |
| Termination | Dip solder |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass / Zinc diecasting nickel plated |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
