Adapter

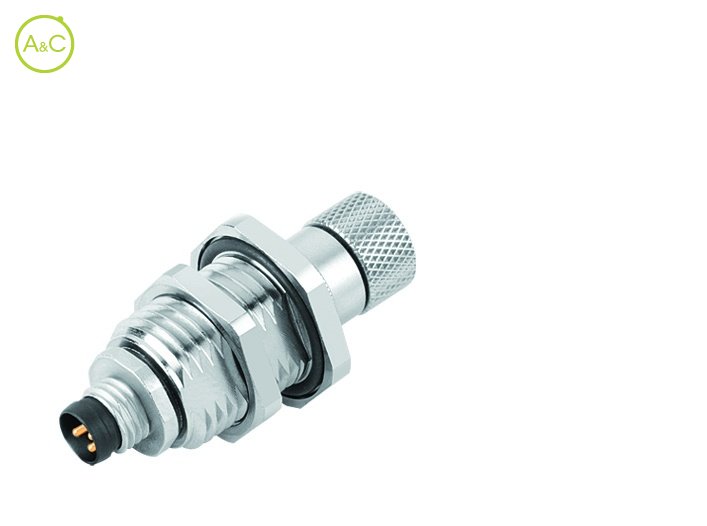

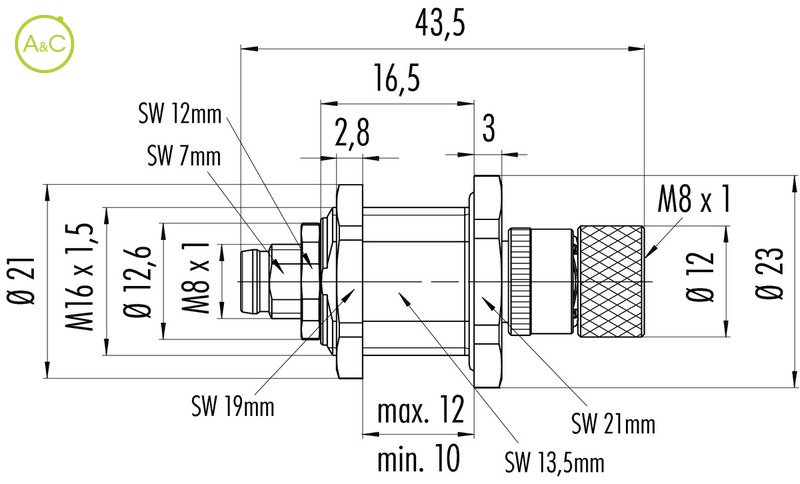

Lead-through for control cabinet, shielded Male connector M8 - female connector M8

Do you have any questions about this product?

More info on this brand:

Article Number	09 5250 00 03
Connector Diameter	21 - 23 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated/brass nickel plated
Product sheet	Download product sheet

Article Number	09 5251 00 04
Connector Diameter	21 - 23 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-25 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA (UL 94 HB)
Material Of Housing	Zinc diecasting nickel plated/brass nickel plated
Product sheet	Download product sheet

Characteristics differ between variants of a connector
