Female Connector for FHH Connector

FHH CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	10FHH-SM1-GAN-TF
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	20FHH-SM1-GAN-TF
Number Of Contacts	20
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	30FHH-SM1-GAN-TF
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	40FHH-SM1-GAN-TF
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	50FHH-SM1-GAN-TF
Number Of Contacts	50
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	60FHH-SM1-GAN-TF
Number Of Contacts	60
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.5mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.50 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

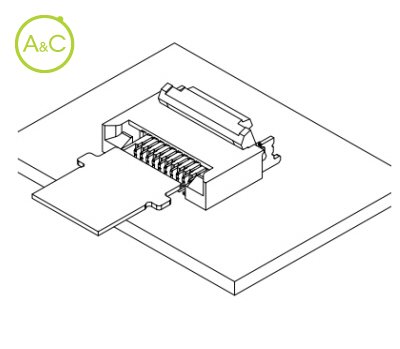

This is 2.0mm height connector with the double-sided contact for FPC. As FPC with protrusions is used for this FHH connector, prevention of incomplete insertion and misinsertion are realised and connection reliability is improved. RoHS Compliant
