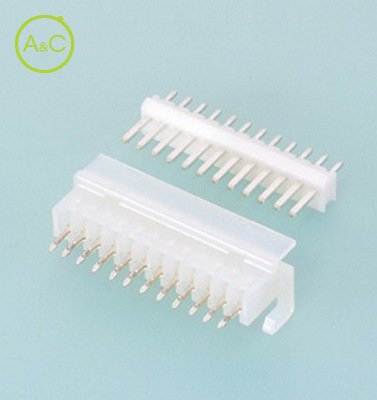

Top Entry Type Receptacle With lock

HVQ CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	5P-HVQ
Number Of Contacts	5
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	6P-HVQ
Number Of Contacts	6
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	7P-HVQ
Number Of Contacts	7
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	8P-HVQ
Number Of Contacts	8
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	9P-HVQ
Number Of Contacts	9
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	10P-HVQ
Number Of Contacts	10
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	11P-HVQ
Number Of Contacts	11
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	12P-HVQ
Number Of Contacts	12
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	2.5mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Characteristics differ between variants of a connector

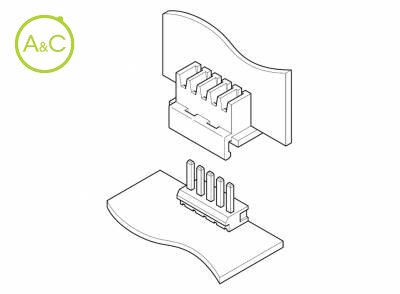

Used to interconnect PC boards in parallel, vertically or horizontally. Folded beam construction. Molded-in header. Superior folded beam construction (1) This sturdy construction withstands repeated stress, resists permanent deformation, and offers a very long service life. (2) This contact design has a large tolerance for variations in mating post thickness and resists deformation when pried. Wide, sturdy post The post has a large cross-sectional area to resist prying during insertion into printed circuit boards and mating with connector housings. Molded-in header The posts are molded into the insulator to provide stability when mounted on printed circuit boards. This also prevents flux from entering the connector during soldering. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
