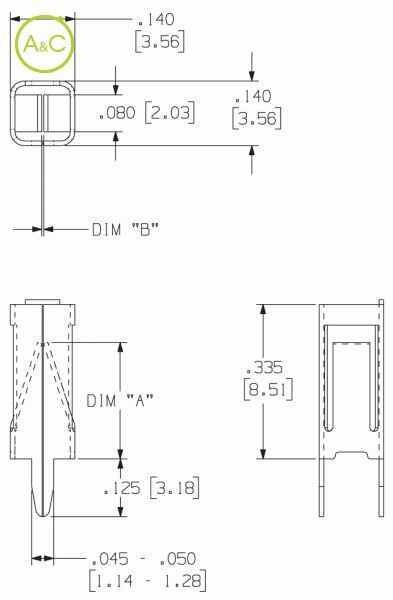

Bottom Entry 2 Beam Box Receptacles

Do you have any questions about this product?

More info on this brand:

Article Number	1193	1200
Dim A	0.200" (5.08mm)	0.250" (6.35mm)
Dim B	0.015" (0.38mm)	0.003" (0.07mm)
Mating Terminal Size	0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade	0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating Ul	10 Amperes	10 Amperes
Current Rating C-ul	10 Amperes	10 Amperes
Ul File Number	E361770	E361770
Applicator System	Reeled: Model 9700, 9700 XY	Reeled: Model 9700, 9700 XY
Taperesist™	Optional (6193-TR)	Optional (6193-TR)
Mating Type	Vertical	Vertical
Mounting Type	Outward Splay	Outward Splay
Mounting Hole Diameter	0.150" ±0.003" (3.81mm ±0.076mm)	0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating	10mOhm Max	10mOhm Max
Mating Entry	Bottom	Bottom
Temperature Rating	-65° to 105°C	-65° to 105°C
Insertion Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.	Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.	Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.)	NA	NA
Pieces Per Reel (reeled Part No.)	/	/
Product sheet	Download product sheet	Download product sheet

Article Number	6193	6200
Dim A	0.200" (5.08mm)	0.250" (6.35mm)
Dim B	0.015" (0.38mm)	0.003" (0.07mm)
Mating Terminal Size	0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade	0.025" to 0.095" (0.64mm to 2.41mm) round or square and 0.032" x 0.110" Blade
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper	100% Tin over Copper
Current Rating Ul	10 Amperes	10 Amperes
Current Rating C-ul	10 Amperes	10 Amperes
Ul File Number	E361770	E361770
Applicator System	Reeled: Model 9700, 9700 XY	Reeled: Model 9700, 9700 XY
Taperesist™	Optional (6193-TR)	Optional (6193-TR)
Mating Type	Vertical	Vertical
Mounting Type	Outward Splay	Outward Splay
Mounting Hole Diameter	0.150" ±0.003" (3.81mm ±0.076mm)	0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating	10mOhm Max	10mOhm Max
Mating Entry	Bottom	Bottom
Temperature Rating	-65° to 105°C	-65° to 105°C
Insertion Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.	Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.	Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.)	/	/
Pieces Per Reel (reeled Part No.)	5000	5000
Product sheet	Download product sheet	Download product sheet
