Fun Connector for FUN Connector
1.jpg)
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 13
| Article Number | 13FUN-B-SV |
| Number Of Contacts | 13 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 1.0mm Pitch Board-in Connector for FFC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm |
| Pcb Mount Style | Through-hole Technology (THT) |
Characteristics differ between variants of a connector

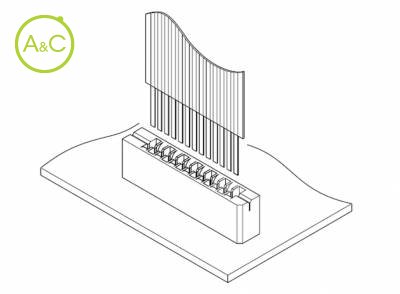

Diagram
Enlarge Diagram

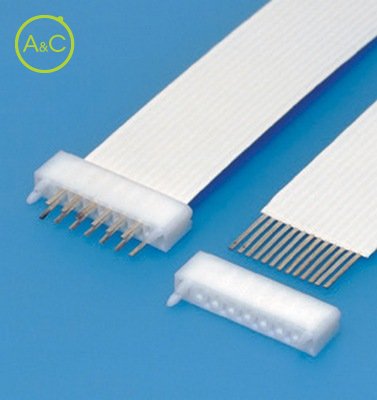

Put the 'FUN' back into connectors with this 1.0mm pitch FFC connector, which was originally developed for use in DVD players, and applications where FFC diSConnection is not required.
This board-in type connector provides direct soldering connection between the FFC and the PC board and therefore, a reduction in assembly time and cost can be realised.
Smaller pitch type
Adoption of the FU connector {1.25mm (.049") pitch} structure leads to the realization of a smaller pitch board-in type connector {1.0mm (.039") pitch}.
Lower assembly costs
Wiring the FFC directory to the PC board will reduce assembly costs.
RoHS Compliant
