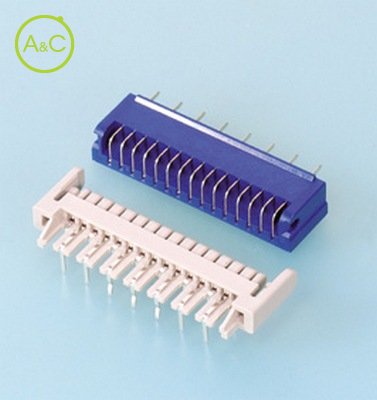

Plug for HQF Connector

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

Number Of Poles

  • 15
  • 25
Article Number 15P-HQF-E 15P-HQF-E
Number Of Contacts 15 15
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
General Description 2.0mm Pitch Board-to-Board connector 2.0mm Pitch Board-to-Board connector
Connection Type Printed Circuit Board Connectors Printed Circuit Board Connectors
Pitch / Style 2.00 mm 2.00 mm
Rated Current (ac/dc) 1.0 A 1.0 A
Rated Voltage (ac/dc) 100 V 100 V
Pcb Mount Style Through-hole Technology (THT) Through-hole Technology (THT)
Characteristics differ between variants of a connector

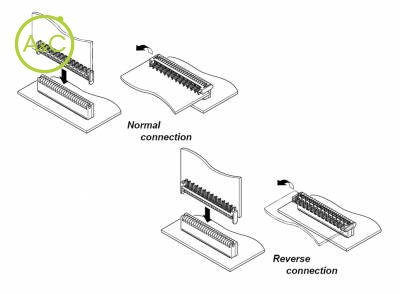

Hinge type board-to-board connectors which allow mated PC boards to move 90 degrees in respect to one another while electricity is turned on. Flexible connection absorbs slight lateral misalignment between boards. Hinged connection With hinged construction, the HQF connector features flexibility. Thus this board-to-board connector allows mated PCB's to move 90 degrees in respect to one another while electricity is turned on. Circuit checks can be made in any rotational position. Flexible connection absorbs slight misalignments between boards Securely connected even if the adjoining boards are laterally out of line. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
