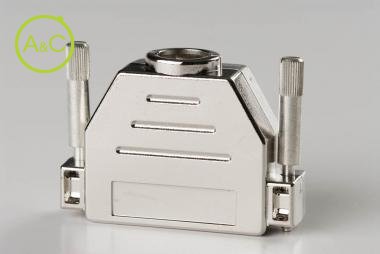

Plastic hoods black and metallized with screw locking

Hoods set packed in bag

17 09 0B 38 T 001

17 09 0B 38 T 001

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

9
15
25
37
50

Article Number	17 09 0B 38 T 001	17 09 0M 38 T 001
Number Of Contacts	9	9
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark*	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark**	Multi opening possible with 25-50P	Multi opening possible with 25-50P
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Possibility to insert in 3 TE grid integrated anti-dust cover	Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version	black with 38 mm thumb screw	Metalllized with 38 mm slotted screw
Colour*	R= Red Y = Yellow H= Blue G = Grey F= Green	R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style	knurled screw	knurled screw
Cable Exit	Straight Angled 25-50p: 2x30°**	Straight Angled 25-50p: 2x30°**
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-10	4-10
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	17 15 0B 38 T 001	17 15 0M 38 T 001
Number Of Contacts	15	15
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark*	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark**	Multi opening possible with 25-50P	Multi opening possible with 25-50P
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Possibility to insert in 3 TE grid integrated anti-dust cover	Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version	black with 38 mm thumb screw	Metalllized with 38 mm slotted screw
Colour*	R= Red Y = Yellow H= Blue G = Grey F= Green	R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style	knurled screw	knurled screw
Cable Exit	Straight Angled 25-50p: 2x30°**	Straight Angled 25-50p: 2x30°**
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12	4-12
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	17 25 0B 38 T 001	17 25 0M 38 T 001
Number Of Contacts	25	25
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark*	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark**	Multi opening possible with 25-50P	Multi opening possible with 25-50P
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Possibility to insert in 3 TE grid integrated anti-dust cover	Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version	black with 38 mm thumb screw	Metalllized with 38 mm slotted screw
Colour*	R= Red Y = Yellow H= Blue G = Grey F= Green	R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style	knurled screw	knurled screw
Cable Exit	Straight Angled 25-50p: 2x30°**	Straight Angled 25-50p: 2x30°**
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	4-12	4-12
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	17 37 0B 38 T 001	17 37 0M 38 T 001
Number Of Contacts	37	37
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark*	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark**	Multi opening possible with 25-50P	Multi opening possible with 25-50P
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Possibility to insert in 3 TE grid integrated anti-dust cover	Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version	black with 38 mm thumb screw	Metalllized with 38 mm slotted screw
Colour*	R= Red Y = Yellow H= Blue G = Grey F= Green	R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style	knurled screw	knurled screw
Cable Exit	Straight Angled 25-50p: 2x30°**	Straight Angled 25-50p: 2x30°**
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15	7-15
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Article Number	17 50 0B 38 T 001	17 50 0M 38 T 001
Number Of Contacts	50	50
Upper Temperature	+90 °C	+90 °C
Lower Temperature	-20 °C	-20 °C
Plating	Nickel plated copper	Nickel plated copper
Thread	UNC 4-40	UNC 4-40
Remark*	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F	If you need coloured hoods please replace the B in the article number by R,Y,H,G or F
Remark**	Multi opening possible with 25-50P	Multi opening possible with 25-50P
Material	ABS UL 94-V0	ABS UL 94-V0
Extra Information	Possibility to insert in 3 TE grid integrated anti-dust cover	Possibility to insert in 3 TE grid integrated anti-dust cover
Hood Version	black with 38 mm thumb screw	Metalllized with 38 mm slotted screw
Colour*	R= Red Y = Yellow H= Blue G = Grey F= Green	R= Red Y = Yellow H= Blue G = Grey F= Green
Locking Style	knurled screw	knurled screw
Cable Exit	Straight Angled 25-50p: 2x30°**	Straight Angled 25-50p: 2x30°**
Cable Fixing	Clamp intern (al)	Clamp intern (al)
Cable Diameter Internal Cable Clamp	7-15	7-15
Material/surface Cover Screws	ST Zinc plated	ST Zinc plated

Characteristics differ between variants of a connector
