Female Connector for FXZT Connector

FXZT CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	17FXZT-SM1-GAN-TF
Number Of Contacts	17
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	21FXZT-SM1-GAN-TF
Number Of Contacts	21
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	23FXZT-SM1-GAN-TF
Number Of Contacts	23
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	25FXZT-SM1-GAN-TF
Number Of Contacts	25
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	27FXZT-SM1-GAN-TF
Number Of Contacts	27
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	31FXZT-SM1-GAN-TF
Number Of Contacts	31
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	33FXZT-SM1-GAN-TF
Number Of Contacts	33
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	39FXZT-SM1-GAN-TF
Number Of Contacts	39
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	45FXZT-SM1-GAN-TF
Number Of Contacts	45
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	51FXZT-SM1-GAN-TF
Number Of Contacts	51
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.3mm Pitch ZIF Connector for FPC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.30 mm
Rated Current (ac/dc)	0.2 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

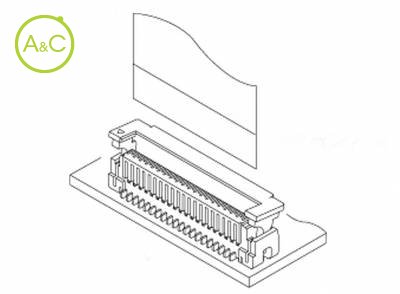

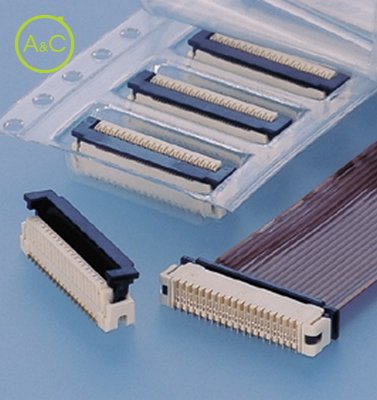

Vertical 0.3mm (.012") pitch ZIF type connector. This connector was mainly developed to connect FPC and subminiature digital products such as DVC, DSC, PDAs and so on. Vertical ZIF type FPC connector Space saving 0.3mm (.012") pitch ZIF type connector for FPC realizes space saving for mounting area. Adoption of slider structure In general flip-lock structure in side entry type, lock might be released during routing of FPC, thus slider structure suitable for vertical ZIF type connector has been adopted. Standards UL Recognized E60389 RoHS Compliant
