Shrouded Header SMT

HTB CONNECTOR

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

JST

Number Of Poles

Article Number	30H-HTBK-06-TF
Number Of Contacts	30
Upper Temperature	+85 °C
Lower Temperature	-55 °C
General Description	0.635mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.635 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	40H-HTBK-06-TF
Number Of Contacts	40
Upper Temperature	+85 °C
Lower Temperature	-55 °C
General Description	0.635mm Pitch Board-to-Board Connector
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.635 mm
Rated Current (ac/dc)	0.5 A
Rated Voltage (ac/dc)	50 V
Pcb Mount Style	Surface Mount Technology (SMT)

Characteristics differ between variants of a connector

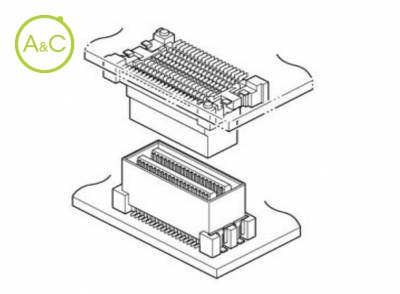

This connector is 0.635mm pitch SMT type board-to-board connector with parallel and perpendicular connection. Distortion preventive construction High contact reliability Absorbing misalignment when mating connector RoHS Compliant
