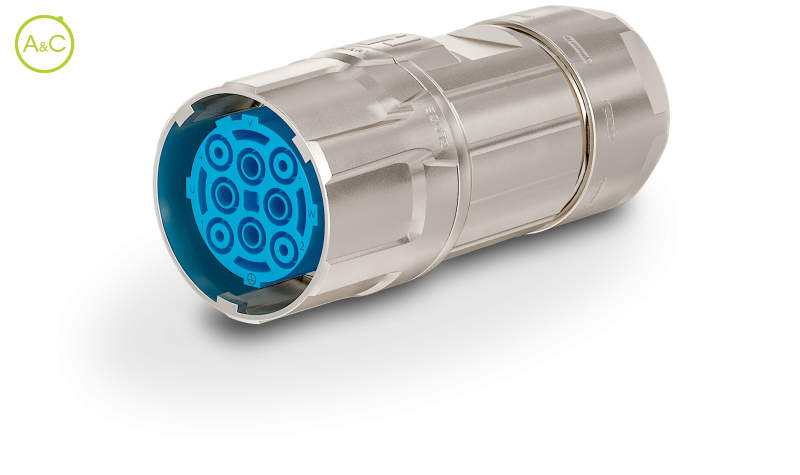

Twilock-S, Straight Connector, Female Thread
Do you have any questions about this product?
More info on this brand:
Hummel
Hummel
Cable Diameter
- 13-18
- 17-24
- 21-28
| Connector Diameter | 46 mm |
| Number Of Contacts | 8 |
| Connector Locking System | Twilock |
| Protection Degree | IP67/IP69K |
| Mating Cycles | >500 times |
| Upper Temperature | +125 °C |
| Lower Temperature | -40 °C |
| Plating | Nickel plated |
| Remark** | Compatible with Speedtec |
| Material | Copper-Zinc alloy/ Die casting |
| Required Crimp Contacts |
"4 x 2 mm: 7.015.952.002 (1 - 4 mm²) & 4 x 3,6 mm: 7.015.953.602 (1,5 - 4 mm²), 7.015.953.612 (6 mm²), 7.015.953.622 (10 mm²), 7.015.953.632 (16 mm²)" |
| Contact Diameter (a) | 2 |
| Contact Diameter (b) | 3,6 |
| Wire Section (a) | 1-4 mm² |
| Wire Section (b) | 1,5-16 mm² |
| Nominal Current (a) | 28 A |
| Nominal Current (b) | 55 A |
| Nominal Voltage (degree Of Pollution 3) (a) | 300 V ~ |
| Nominal Voltage (degree Of Pollution 3) (b) | 600 V ~ |
| Test Voltage (a) | 2500 V ~ |
| Test Voltage (b) | 4000 V ~ |
| Insulation Resistance | > 1013 MΩ |
| Max. Contact Resistance (a) | 3 MΩ |
| Max. Contact Resistance (b) | 1 MΩ |
Characteristics differ between variants of a connector
