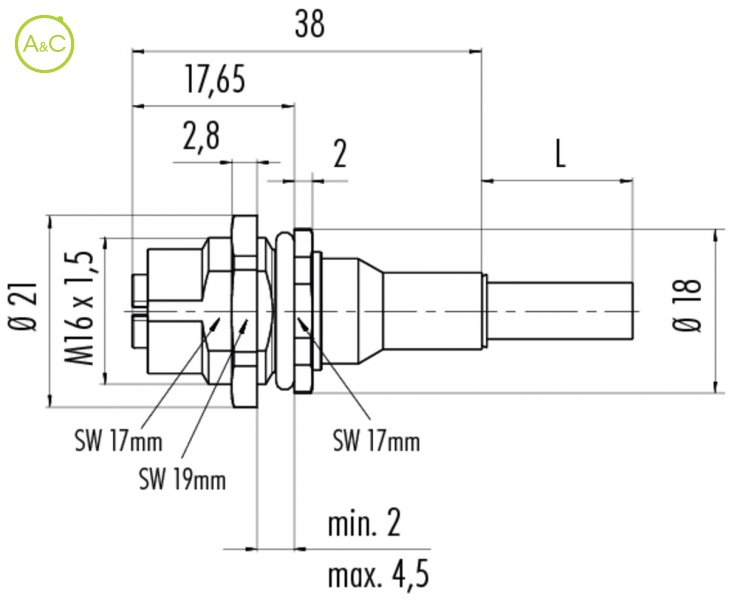

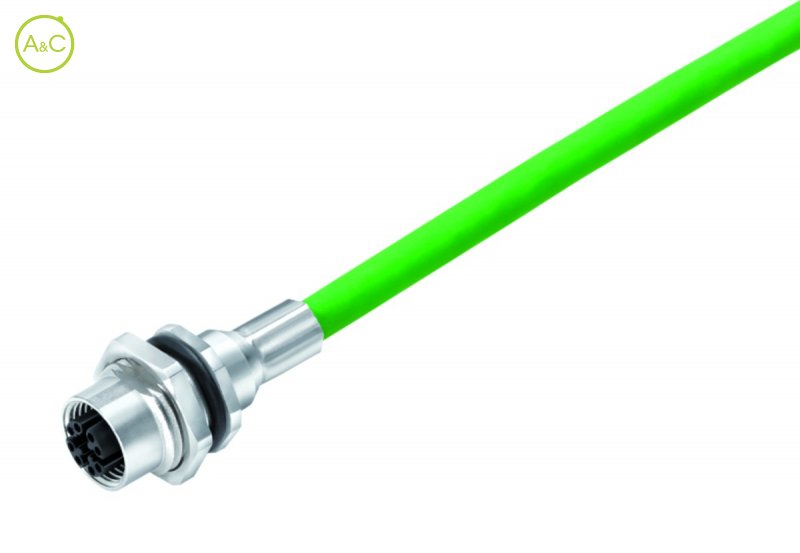

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 8
| Article Number | 70 3784 706 08 |
| Connector Diameter | 21 mm |
| Number Of Contacts | 8 contacts |
| Connector Locking System | Screw (M12-X) |
| Termination | Cable |
| Protection Degree | IP67 |
| Mating Cycles | >50 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 50 V AC 60 V DC |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 0.5 A |
| Max. Contact Resistance | 10 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Single Lead Structure | 7x0,16 |
| Cable Sheath Ø | 6.2 mm |
| Bending Radius Cable Fixed | ≥25 mm |
| Bending Radius Cable Movable | ≥50 mm |
| Material Housing Of Cable | PUR Green |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
