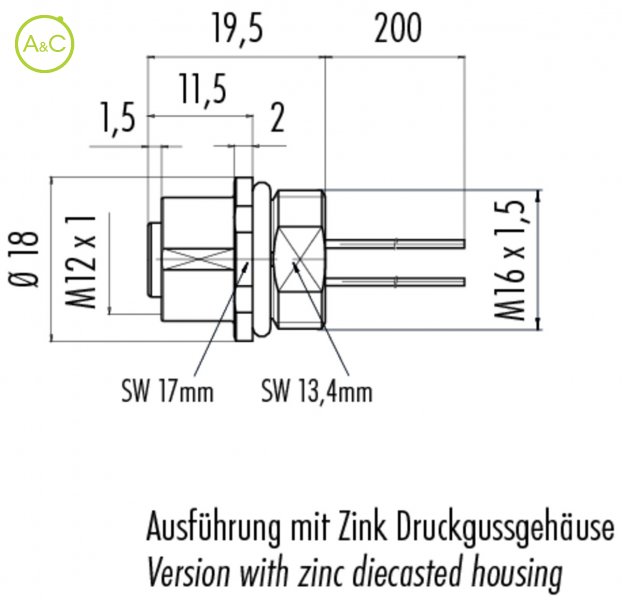

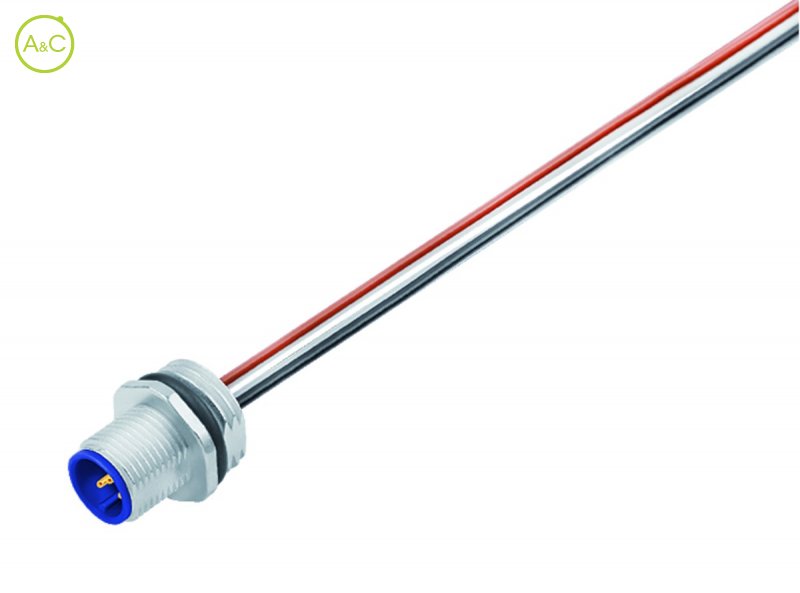

Male panel mount connector

With single wires, 0,25mm², with colour coded contact inserts
UL-approval

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

More info on this brand:

Binder

Number Of Poles

Article Number	76 0231 0011 00004 0200	76 0231 0011 00104 0200	76 0231 0011 00204 0200	76 0231 0011 00304 0200	76 0231 0011 00404 0200	76 0231 0011 00504 0200	76 0231 0011 00604 0200
Old Article Number	09 3431 700 04
Connector Diameter	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Number Of Contacts	4 contacts	4 contacts	4 contacts	4 contacts	4 contacts	4 contacts	4 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires	Single wires	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP67	IP67	IP67	IP67	IP67	IP67	IP67
Mating Cycles	>50 times	>50 times	>50 times	>50 times	>50 times	>50 times	>50 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250	250	250	250	250
Rated Impuls Voltage	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V	2500 V
Pollution Degree	3	3	3	3	3	3	3
Overvoltage Categorie	II	II	II	II	II	II	II
Material Group	II	II	II	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA	PA	PA	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated
Fixing Thread	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5
Product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet

Article Number	76 0231 0011 00005 0200	76 0231 0011 00105 0200	76 0231 0011 00205 0200	76 0231 0011 00305 0200	76 0231 0011 00405 0200	76 0231 0011 00505 0200	76 0231 0011 00605 0200
Old Article Number	09 3441 700 05
Connector Diameter	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm	18 mm
Number Of Contacts	5 contacts	5 contacts	5 contacts	5 contacts	5 contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)	Screw (M12-A)
Termination	Single wires	Single wires	Single wires	Single wires	Single wires	Single wires	Single wires
Wire Section	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²	0.25 mm²
Protection Degree	IP68	IP68	IP68	IP68	IP68	IP68	IP68
Mating Cycles	>100 times	>100 times	>100 times	>100 times	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated Voltage	125	125	125	125	125	125	125
Rated Impuls Voltage	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V	1500 V
Pollution Degree	3	3	3	3	3	3	3
Overvoltage Categorie	II	II	II	II	II	II	II
Material Group	II	II	II	II	II	II	II
Rated Current (40°)	4 A	4 A	4 A	4 A	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA	PA	PA	PA	PA
Material Of Housing	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated	brass/zinc diecasting nickel plated
Fixing Thread	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5	M16 x 1,5
Product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet	Download product sheet
