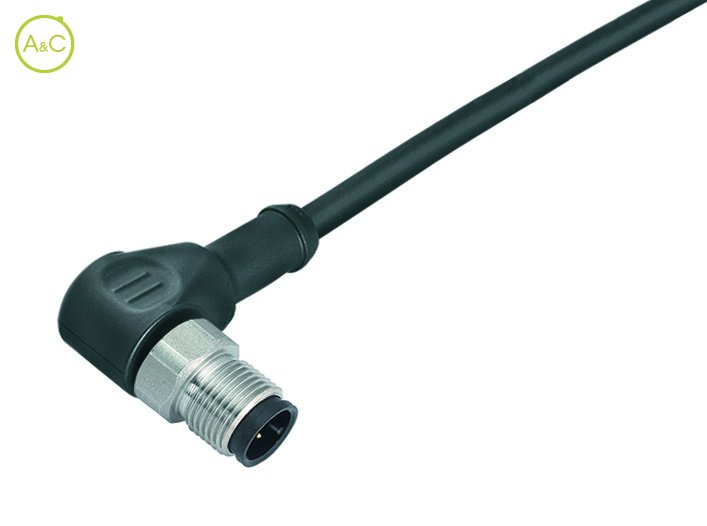

Male angled connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4
- 5
| Article Number | 77 3727 0000 50004 0200 |
| Old Article Number | 79 3427 52 04 |

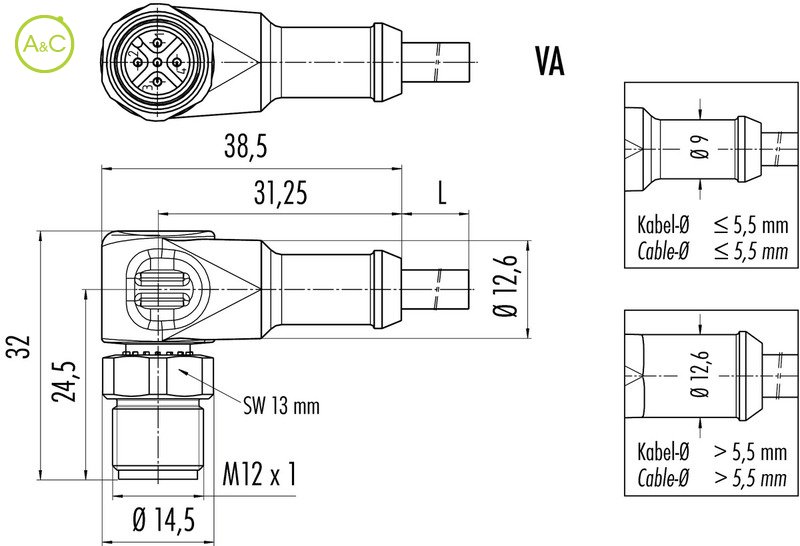

| Connector Diameter | 14.5 mm |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-A) |
| Termination | Crimp, moulded |
| Wire Section | 0.34 mm² |
| Cable Length | 2 mm |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PUR |
| Material Of Housing | PUR |
| Cable Diameter | 5 mm |
| Cable | 4 x 0,34 PUR mm² |
| Cable Jacket Material | PUR |
| Insulation Wire | PVC |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
